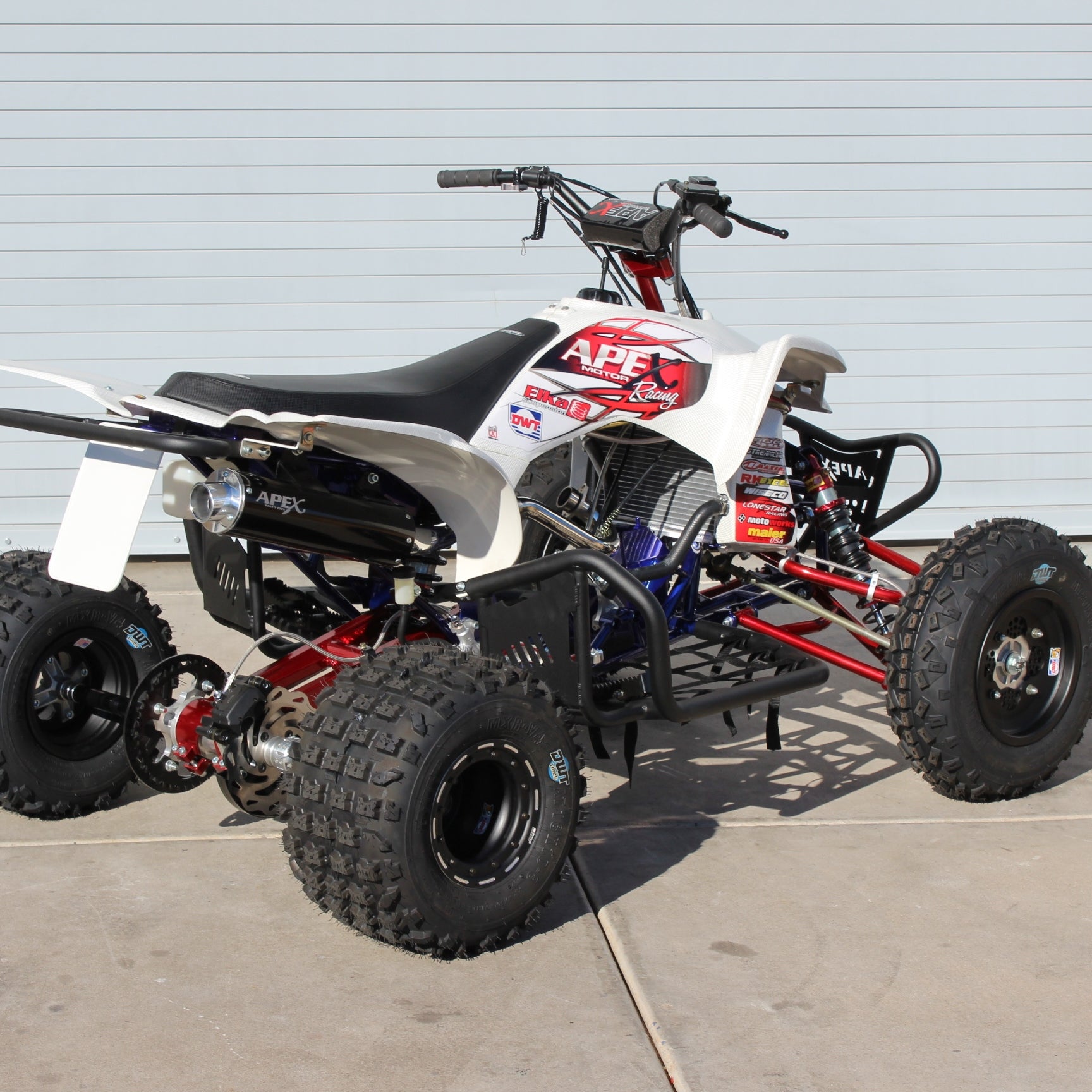

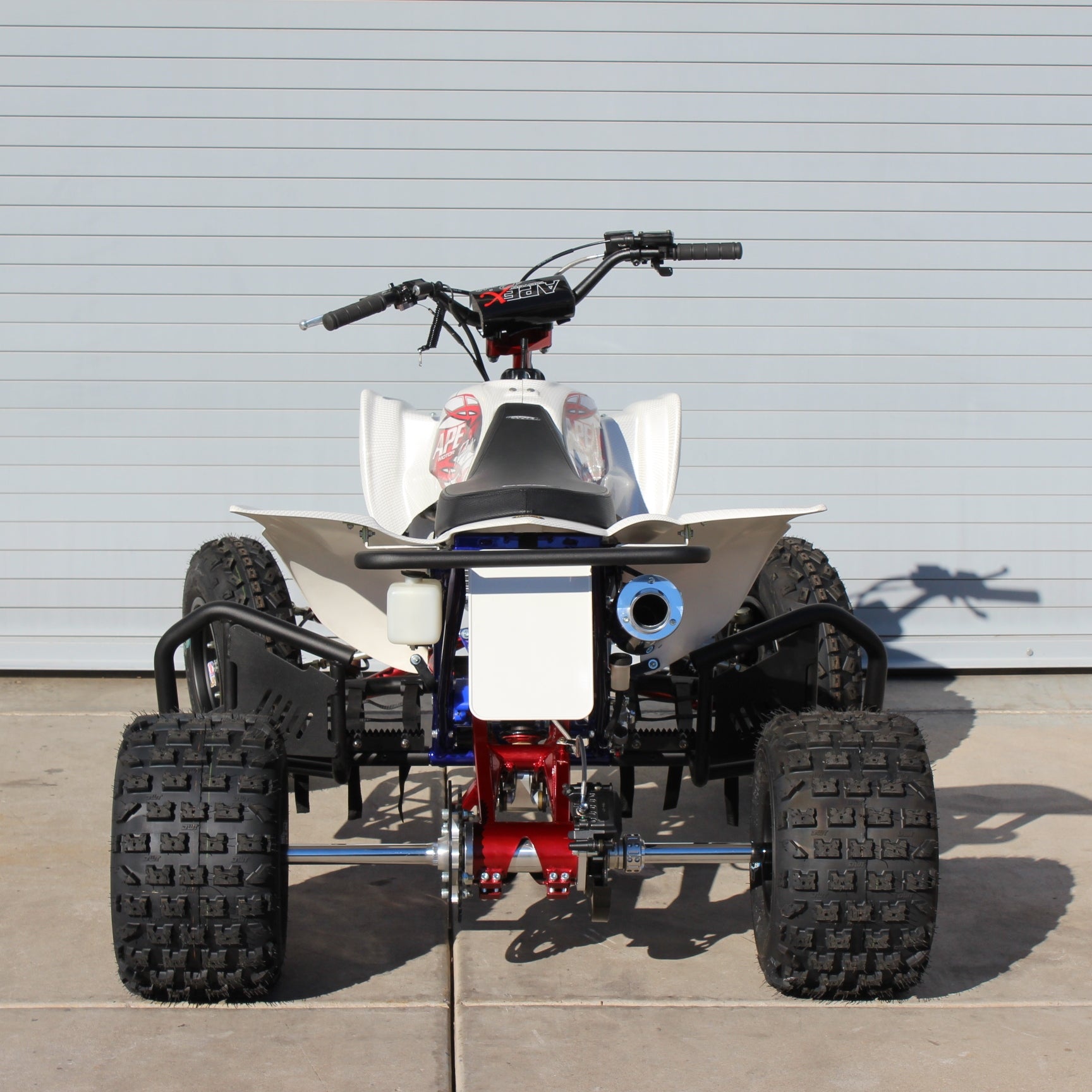

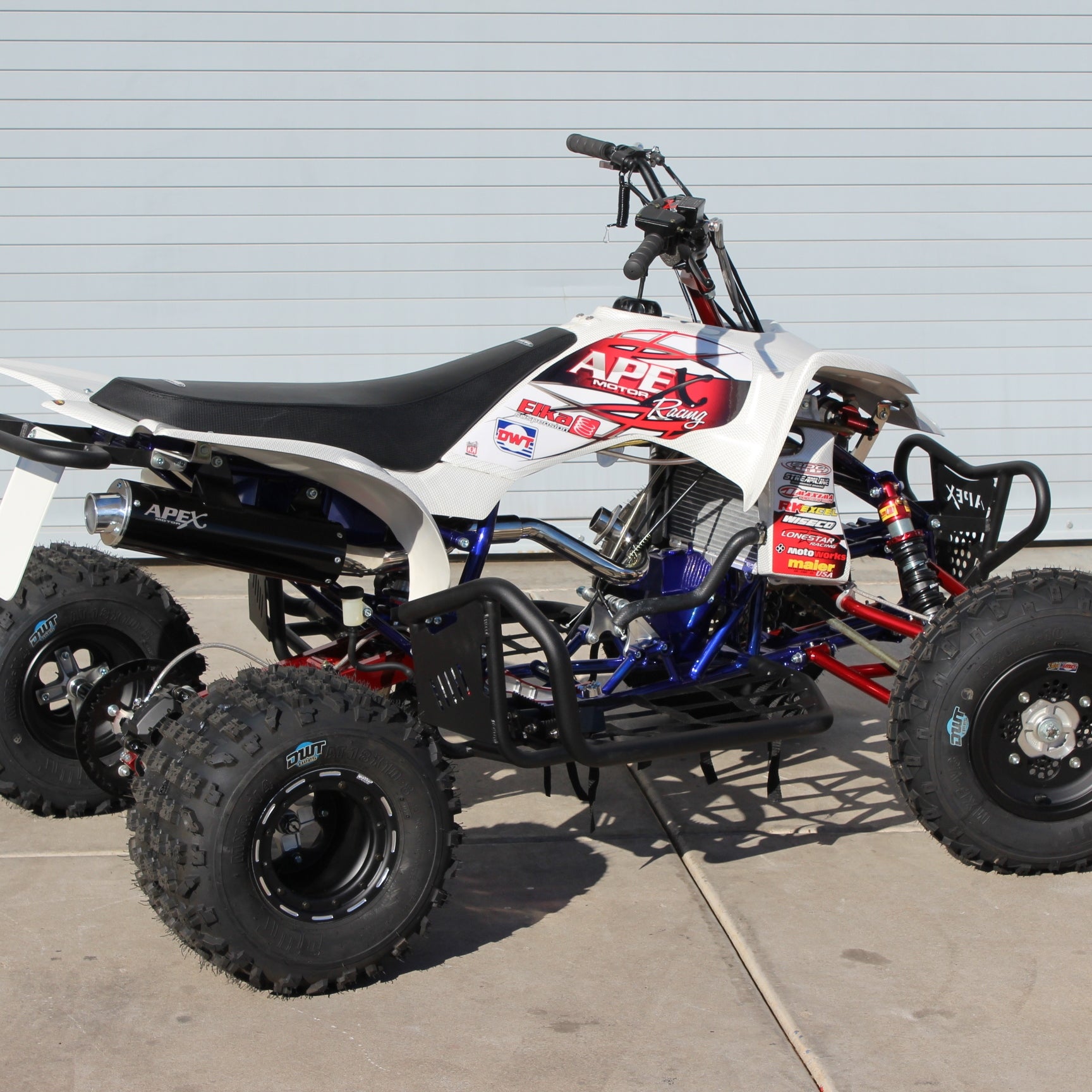

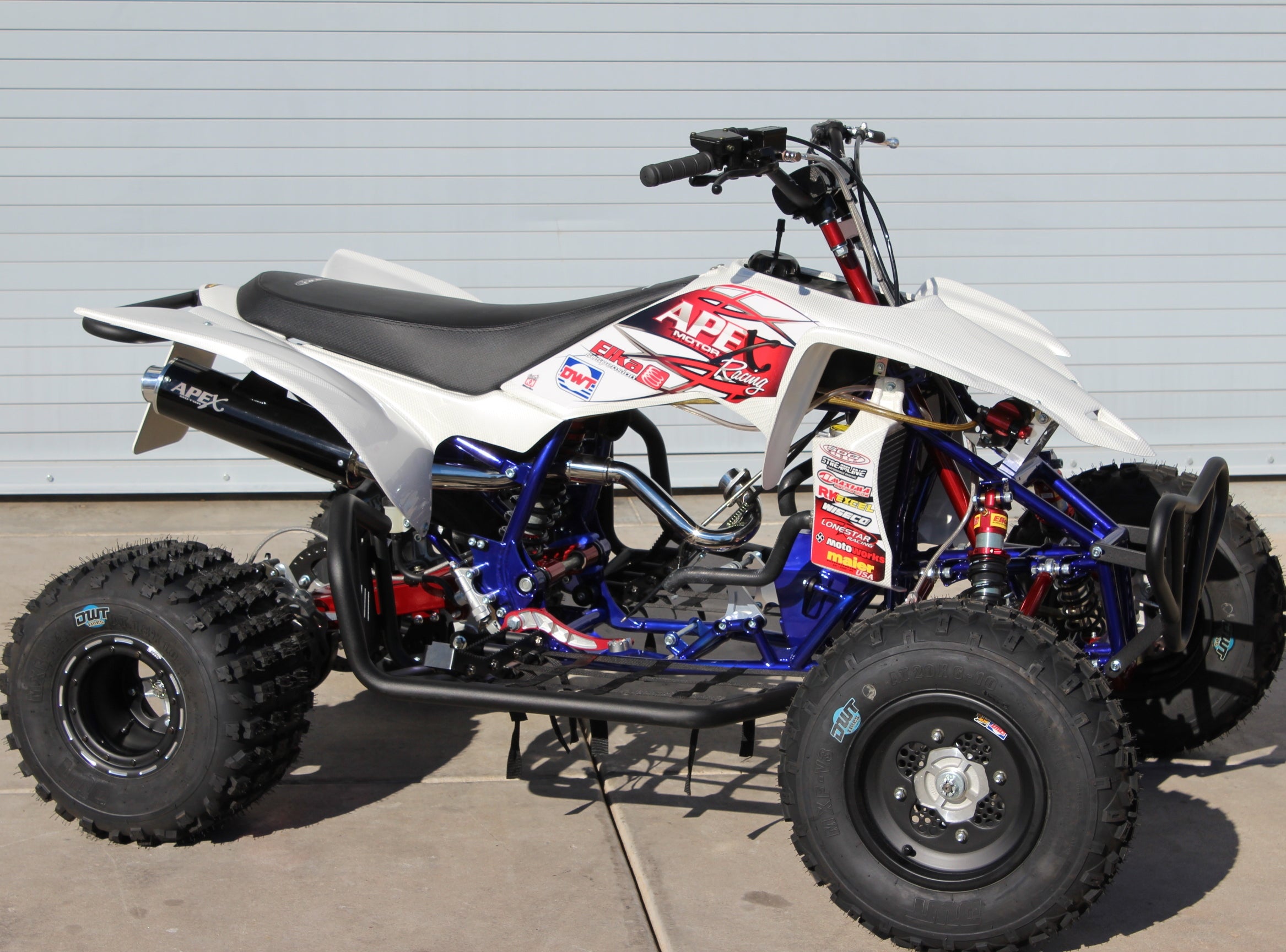

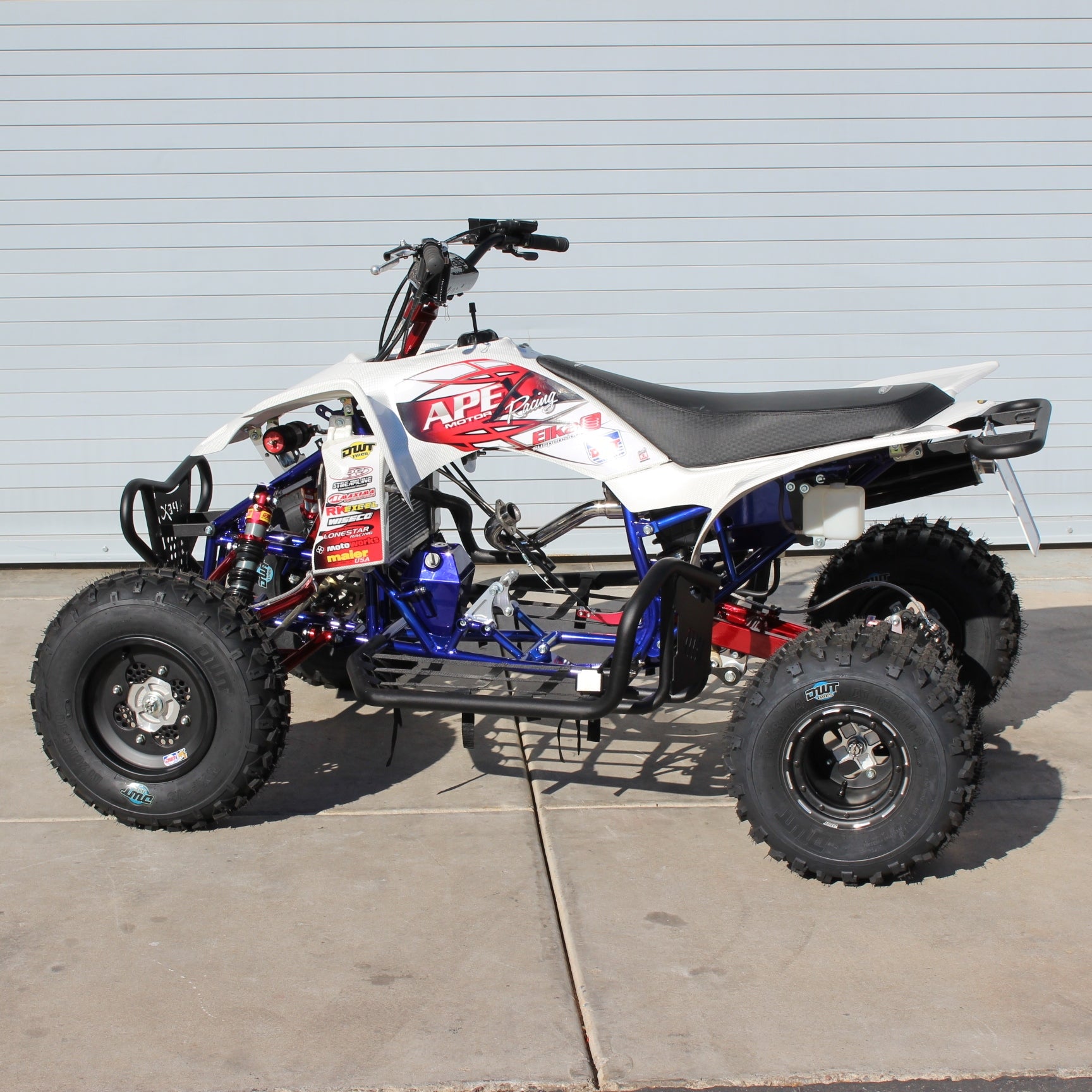

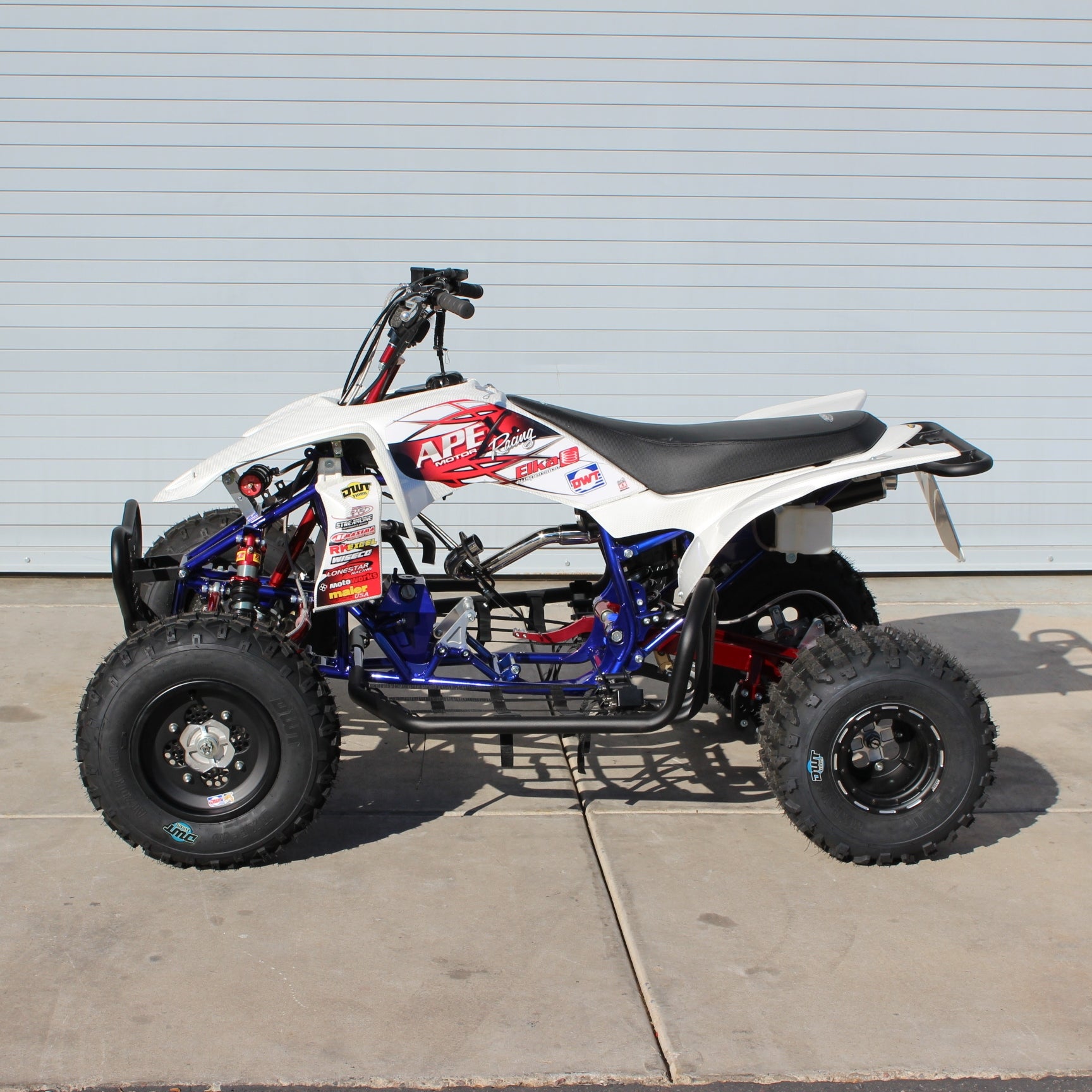

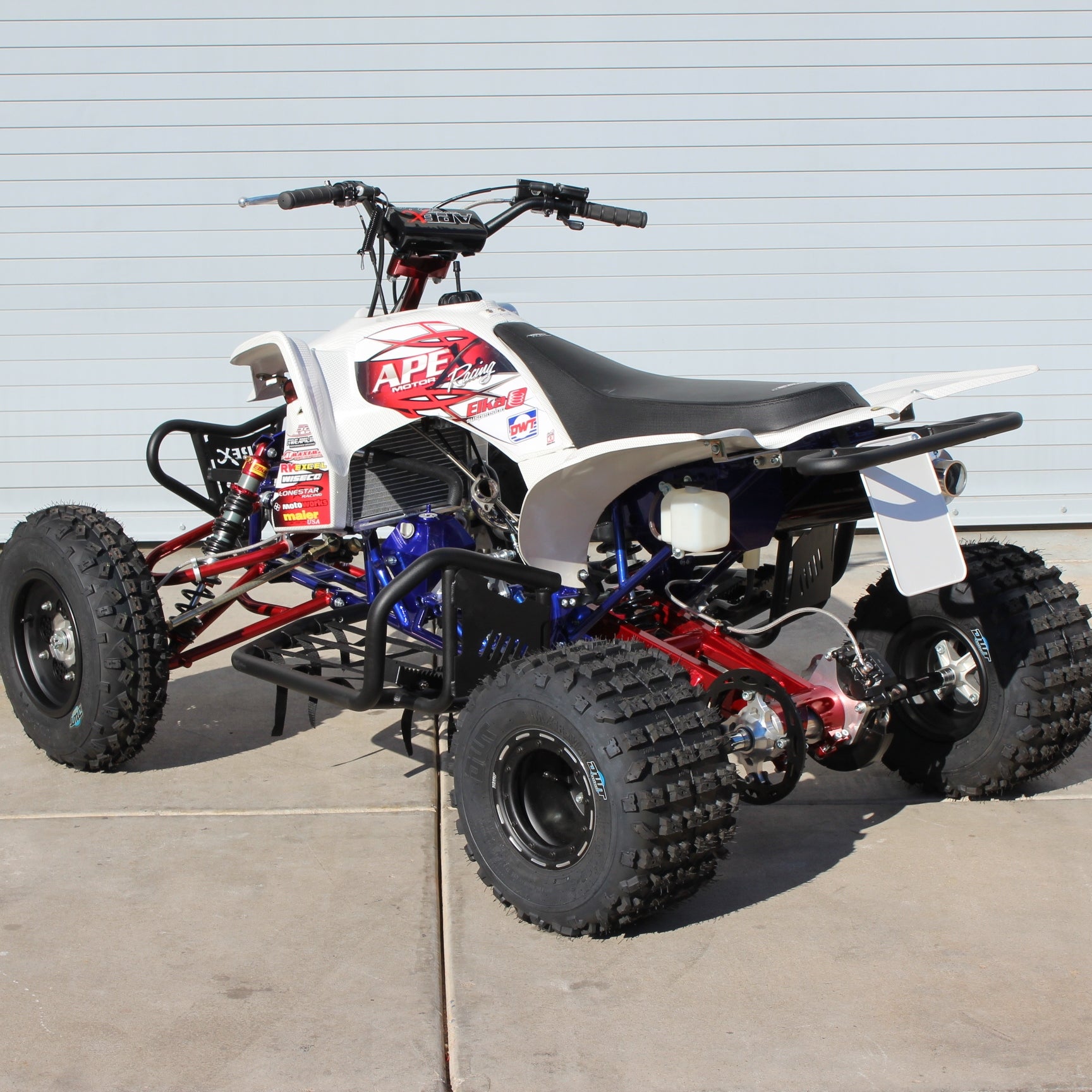

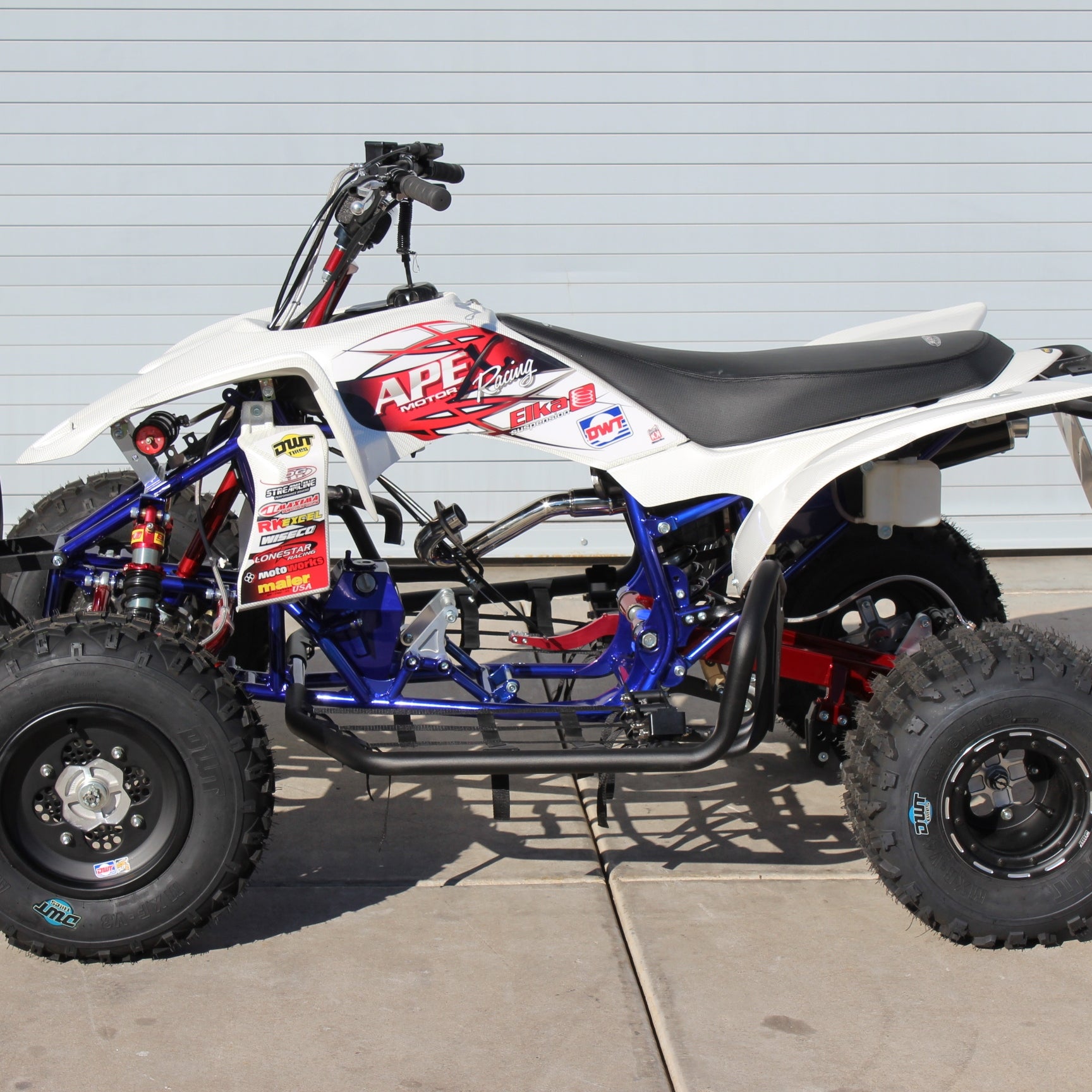

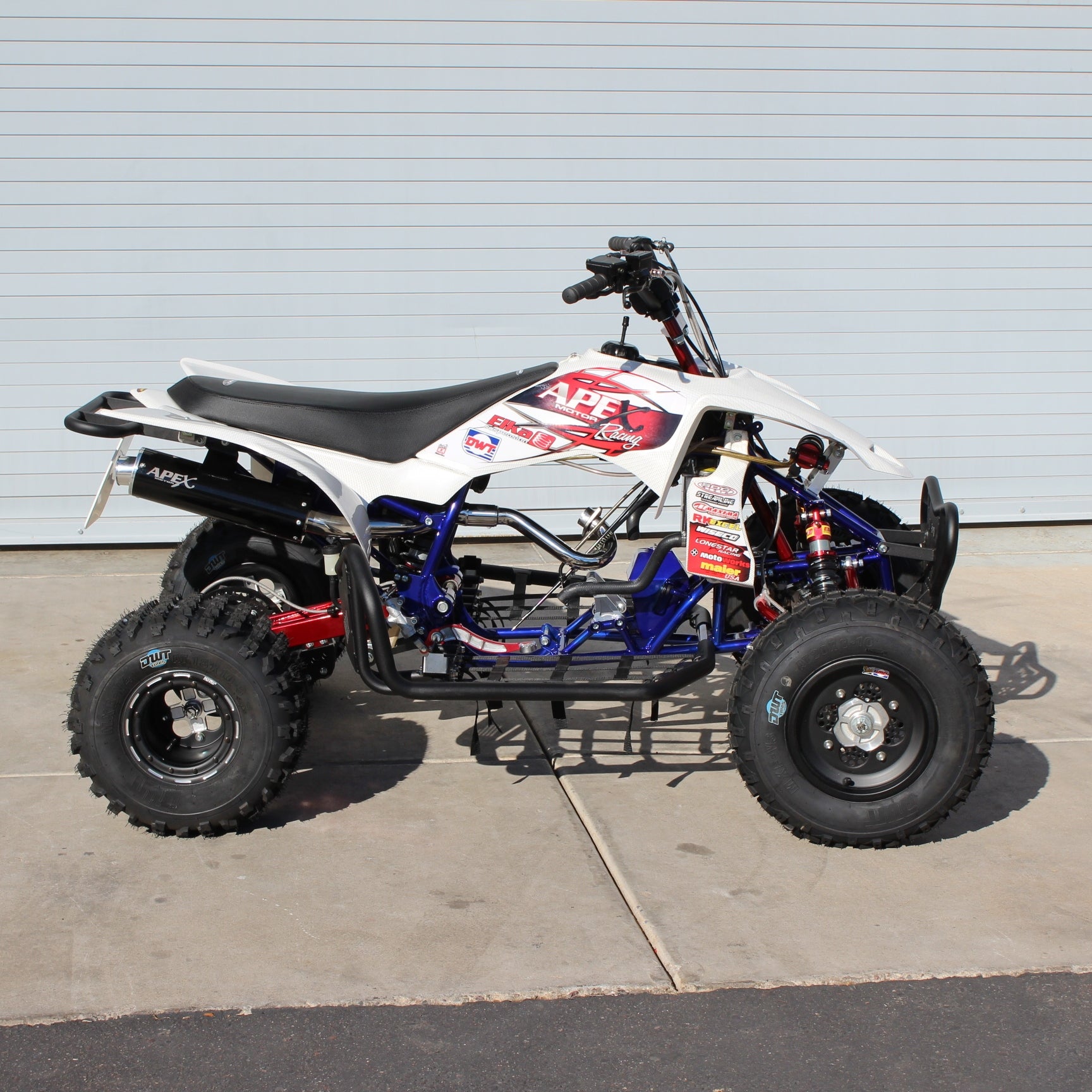

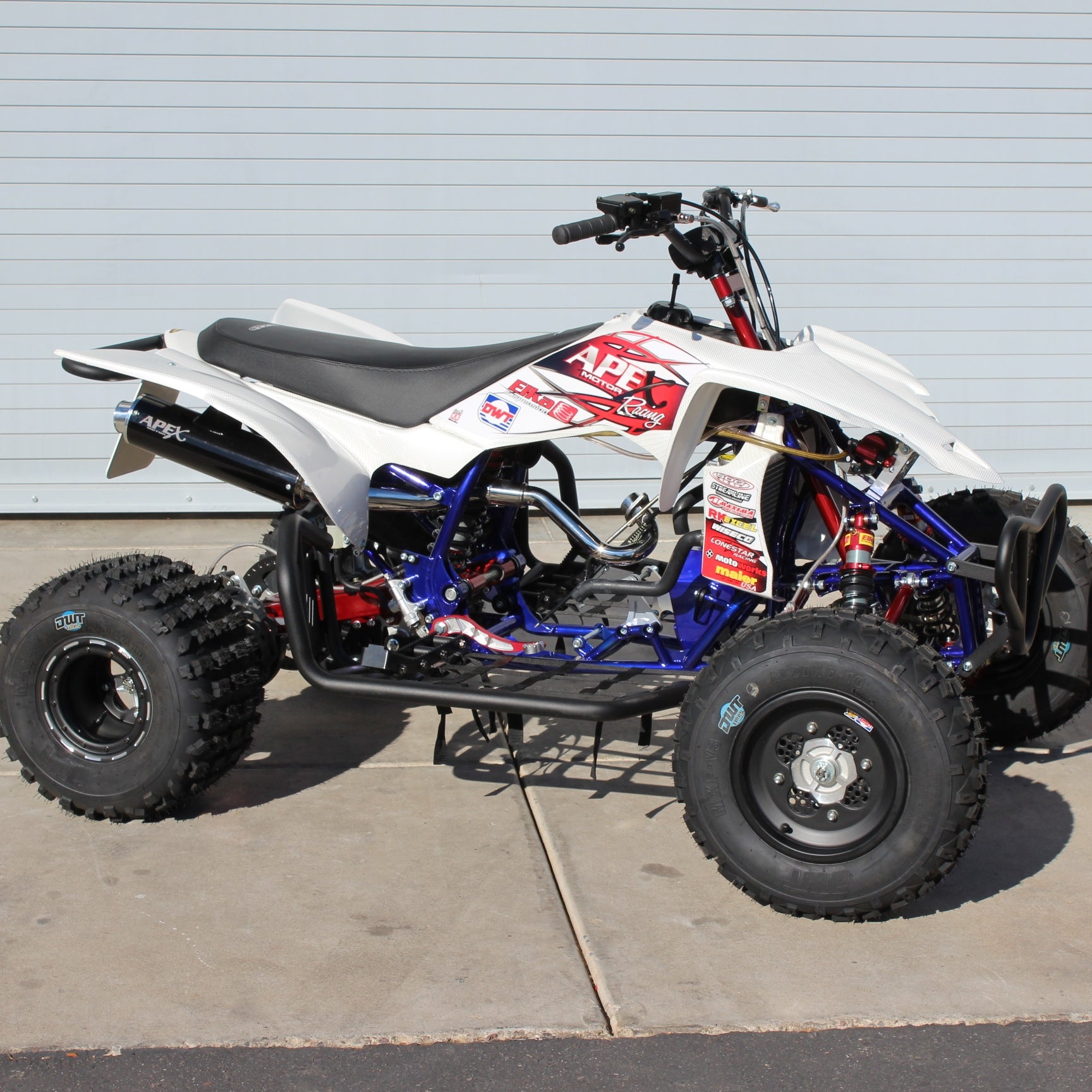

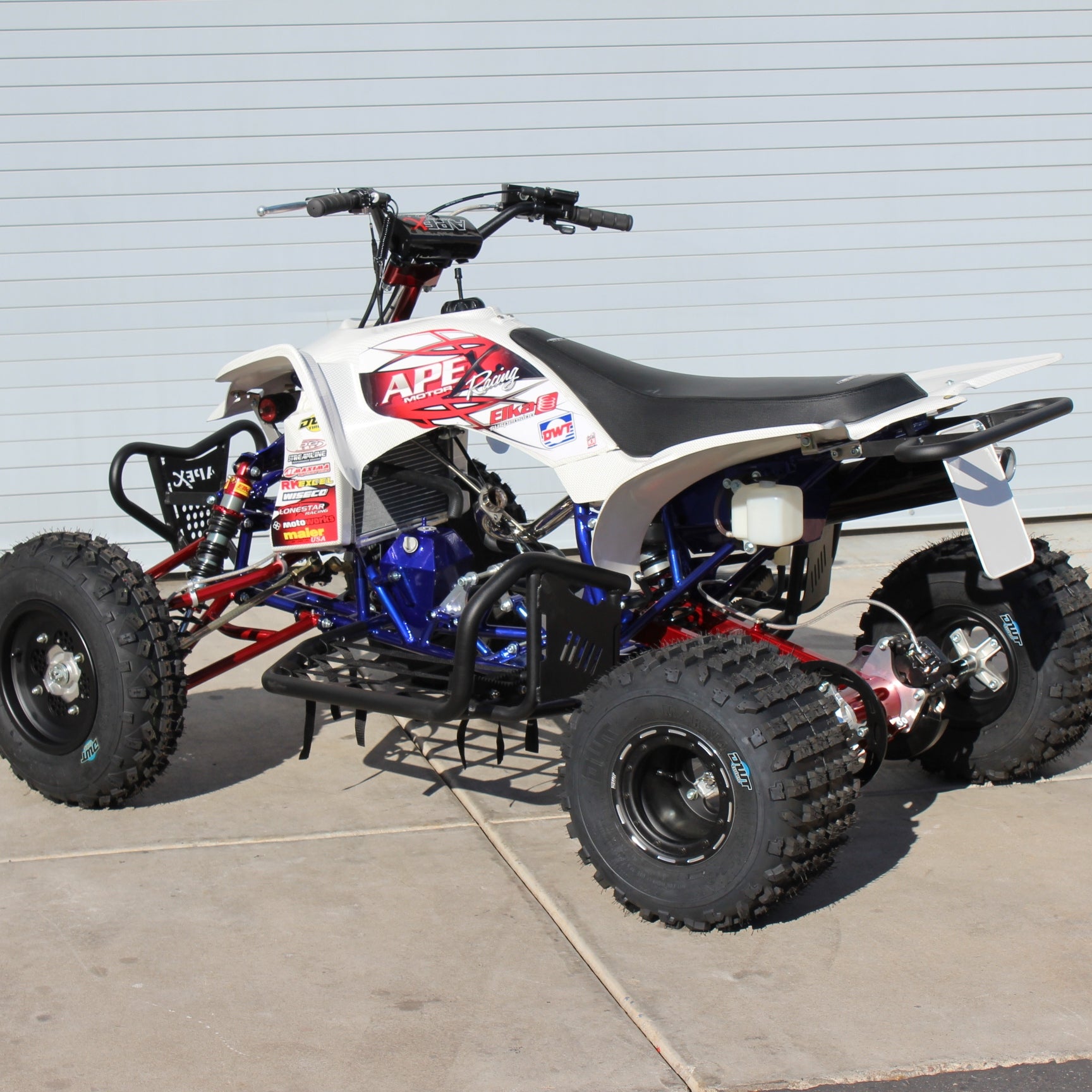

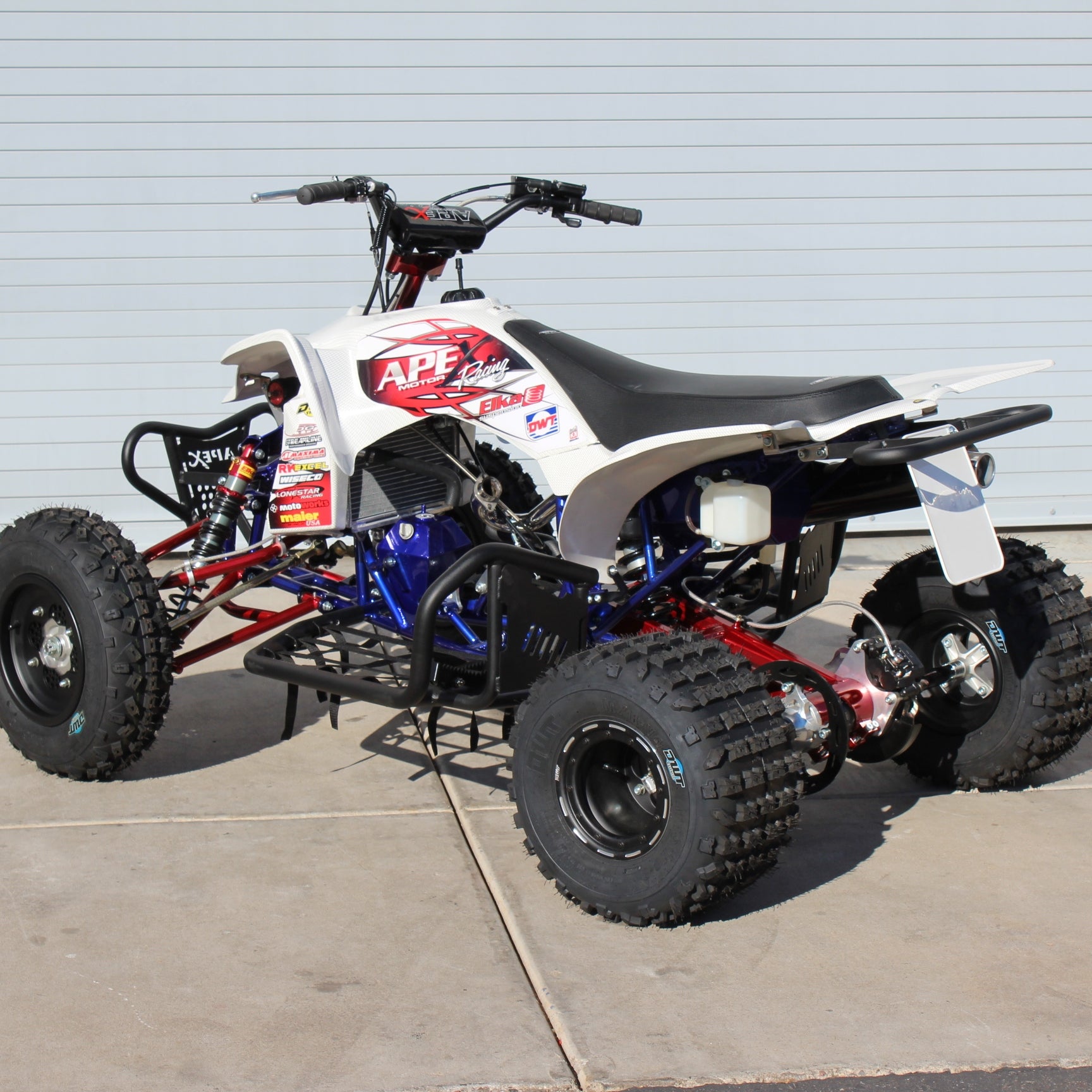

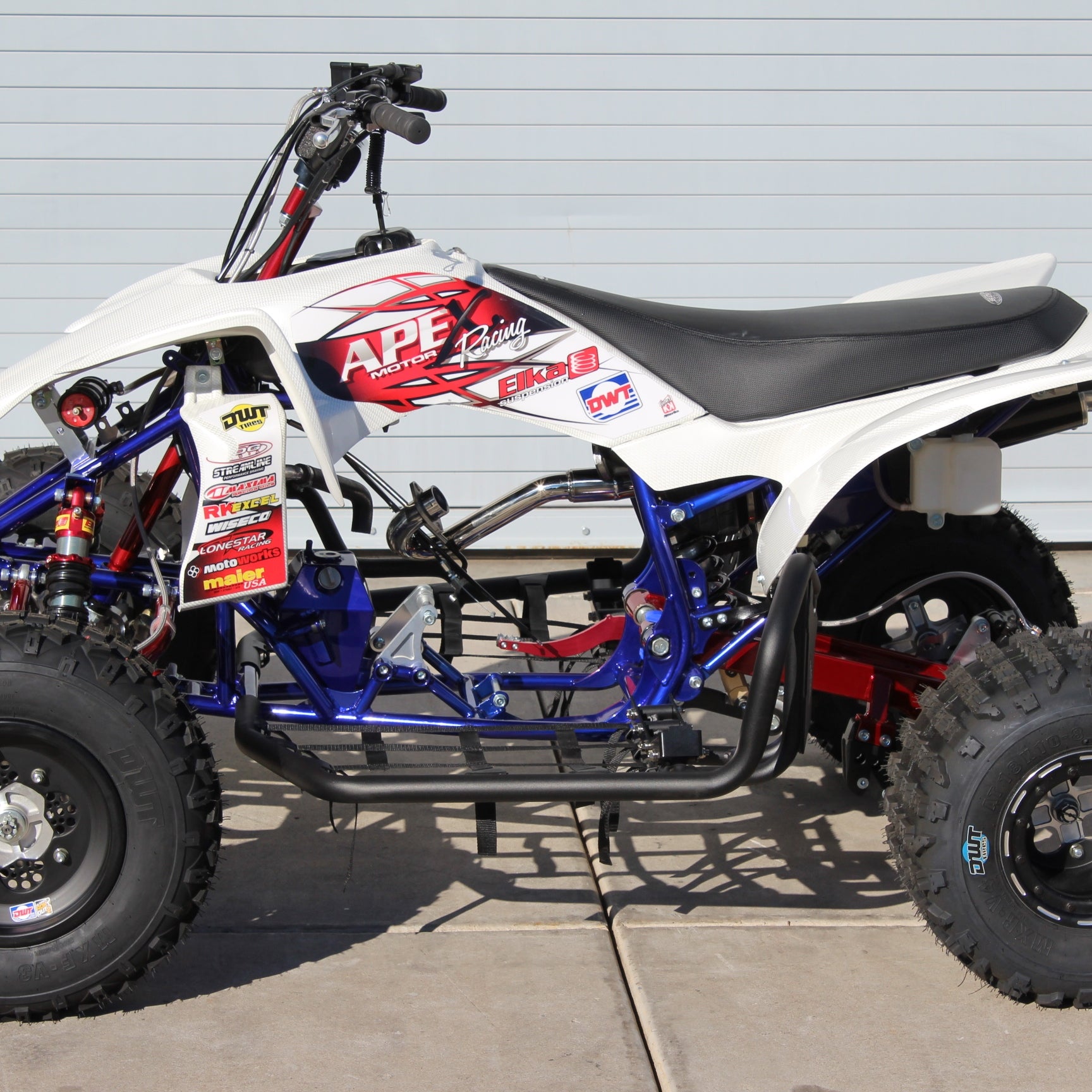

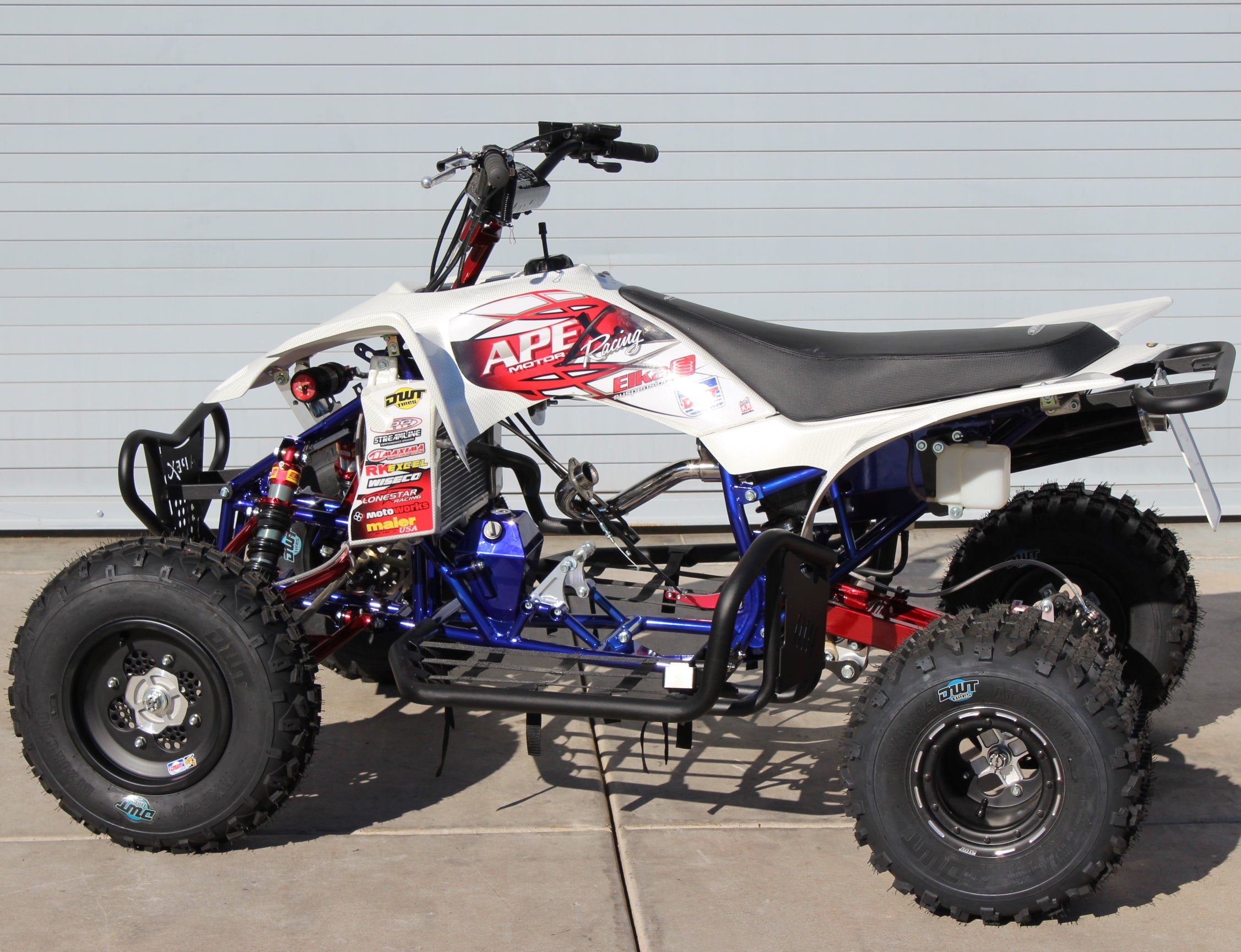

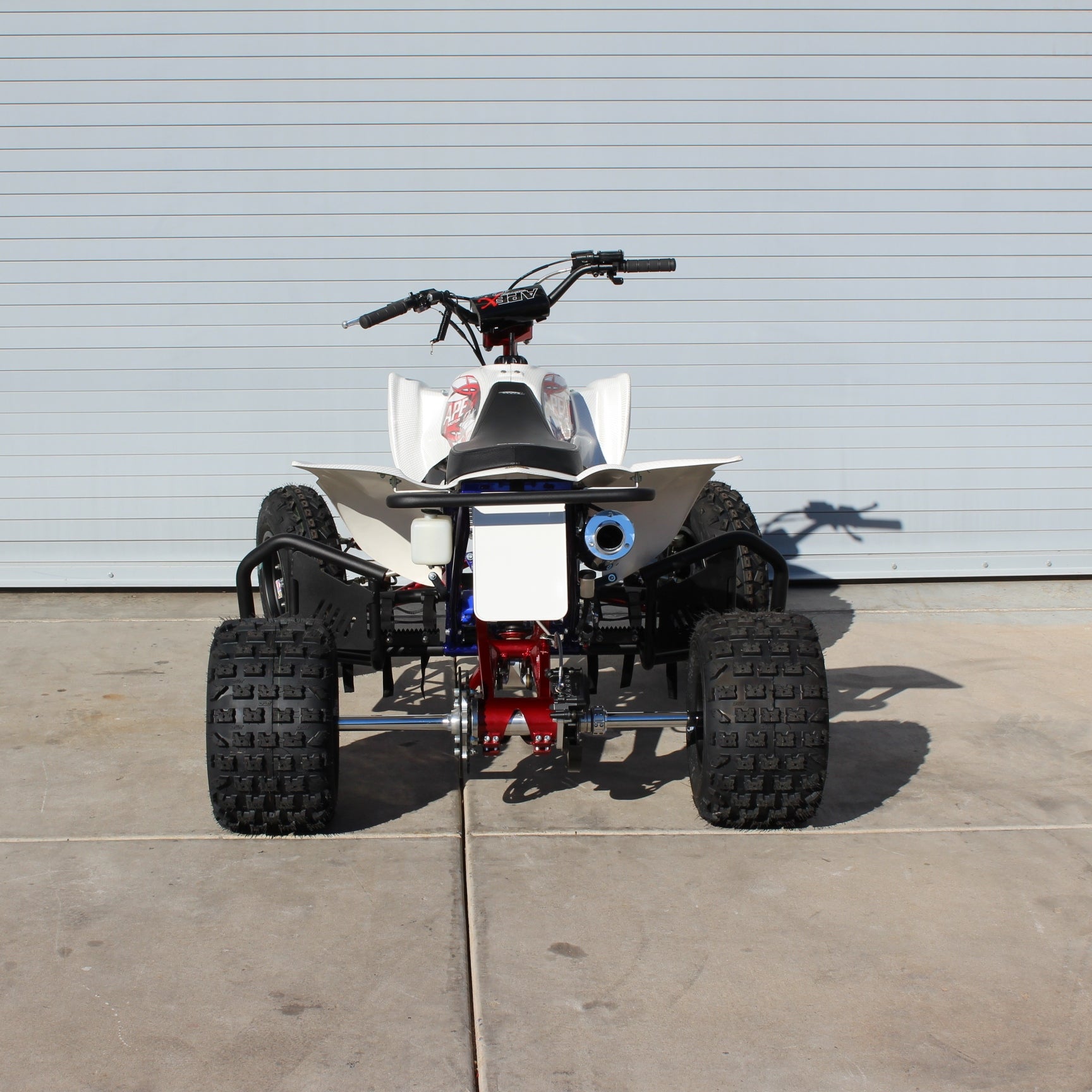

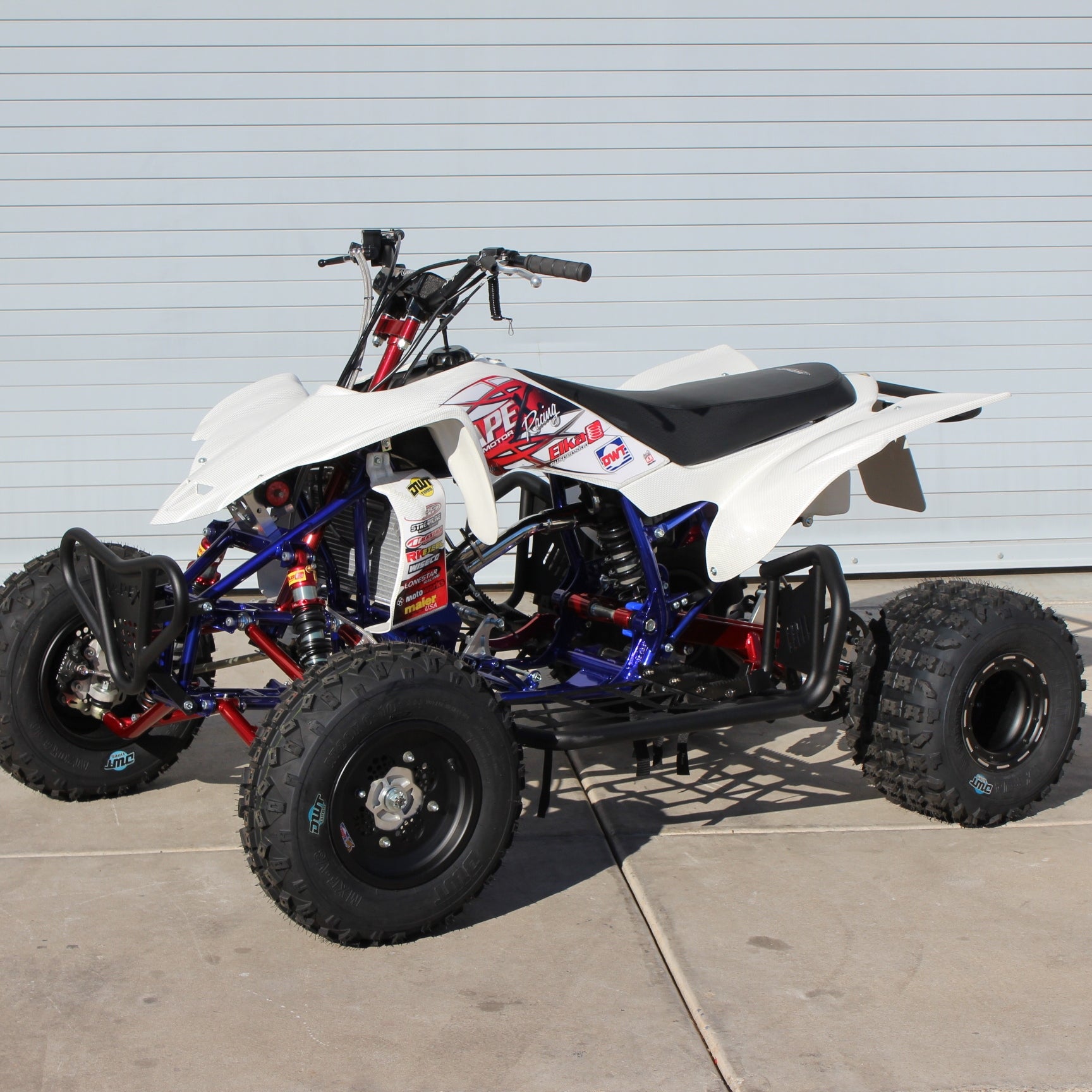

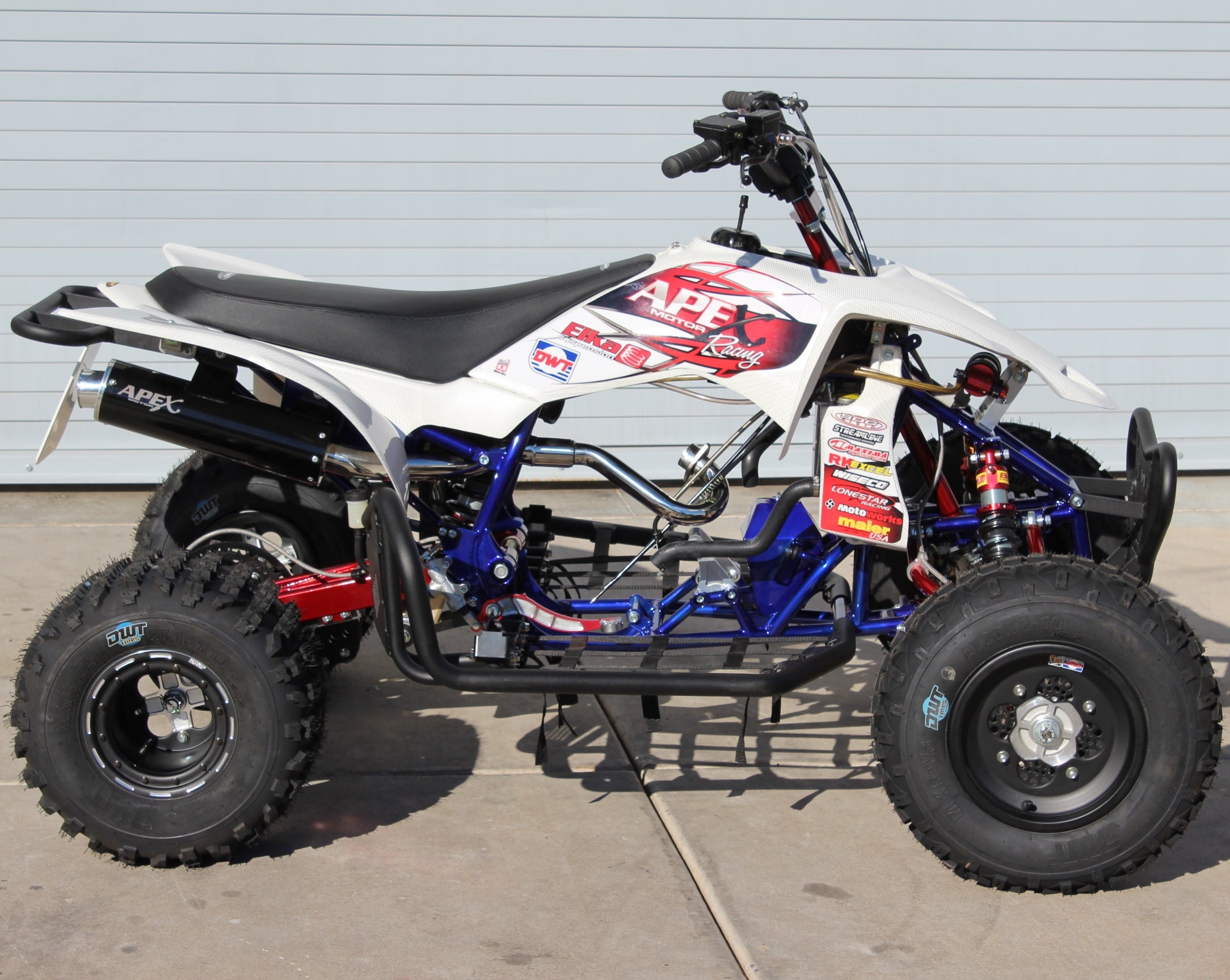

250F "RWB"

THIS IS A ROLLER ONLY - THIS ROLLER DOES NOT INCLUDE AN ENGINE. IF YOU WOULD LIKE TO PURCHASE WITH AN ENGINE, CONTACT FOR PRICING!

$8,500 AS IS - IF YOU WANT A FULL BUILD CONTACT FOR PRICING!

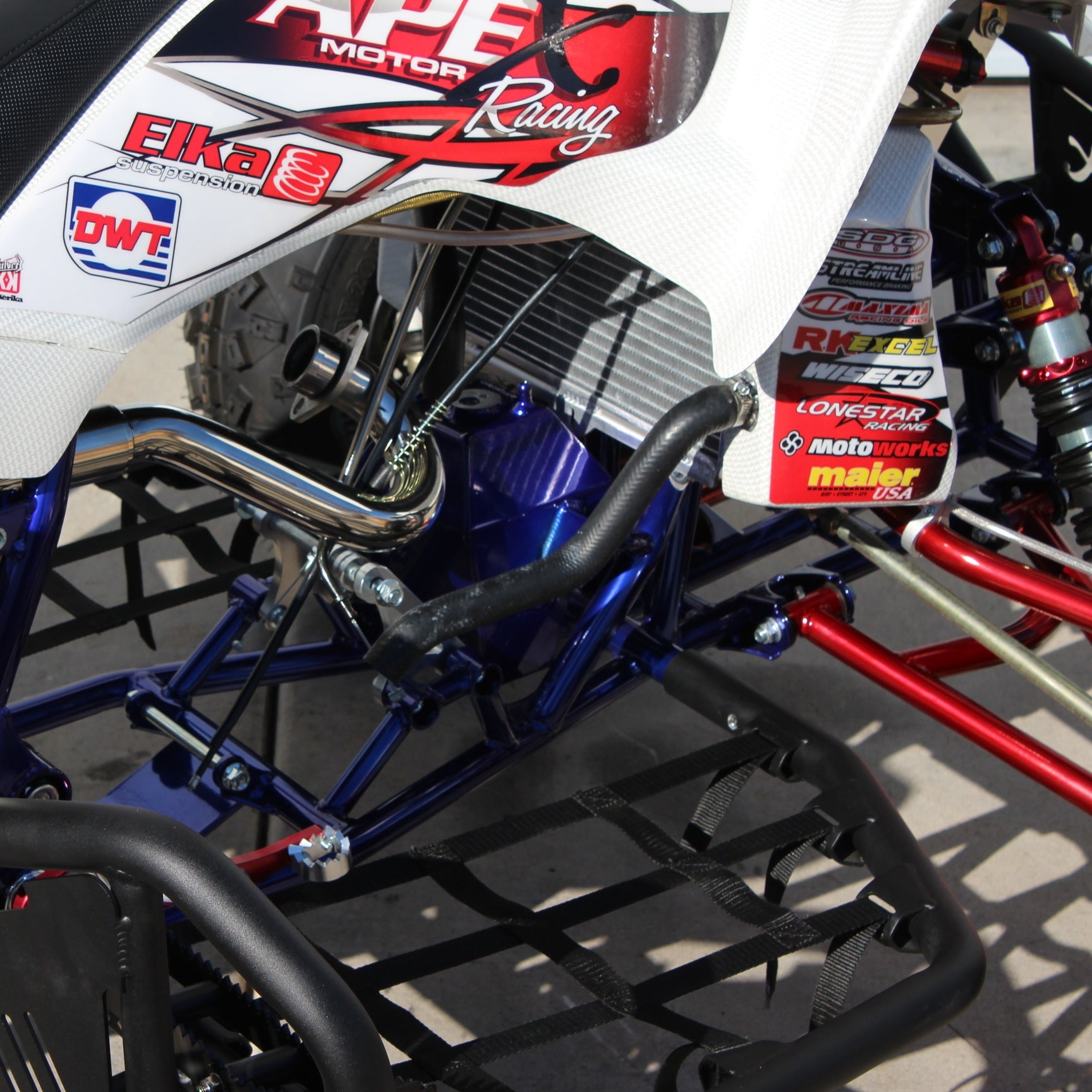

Frame: Chromoloy, Tig Welded w/six point sub-frame

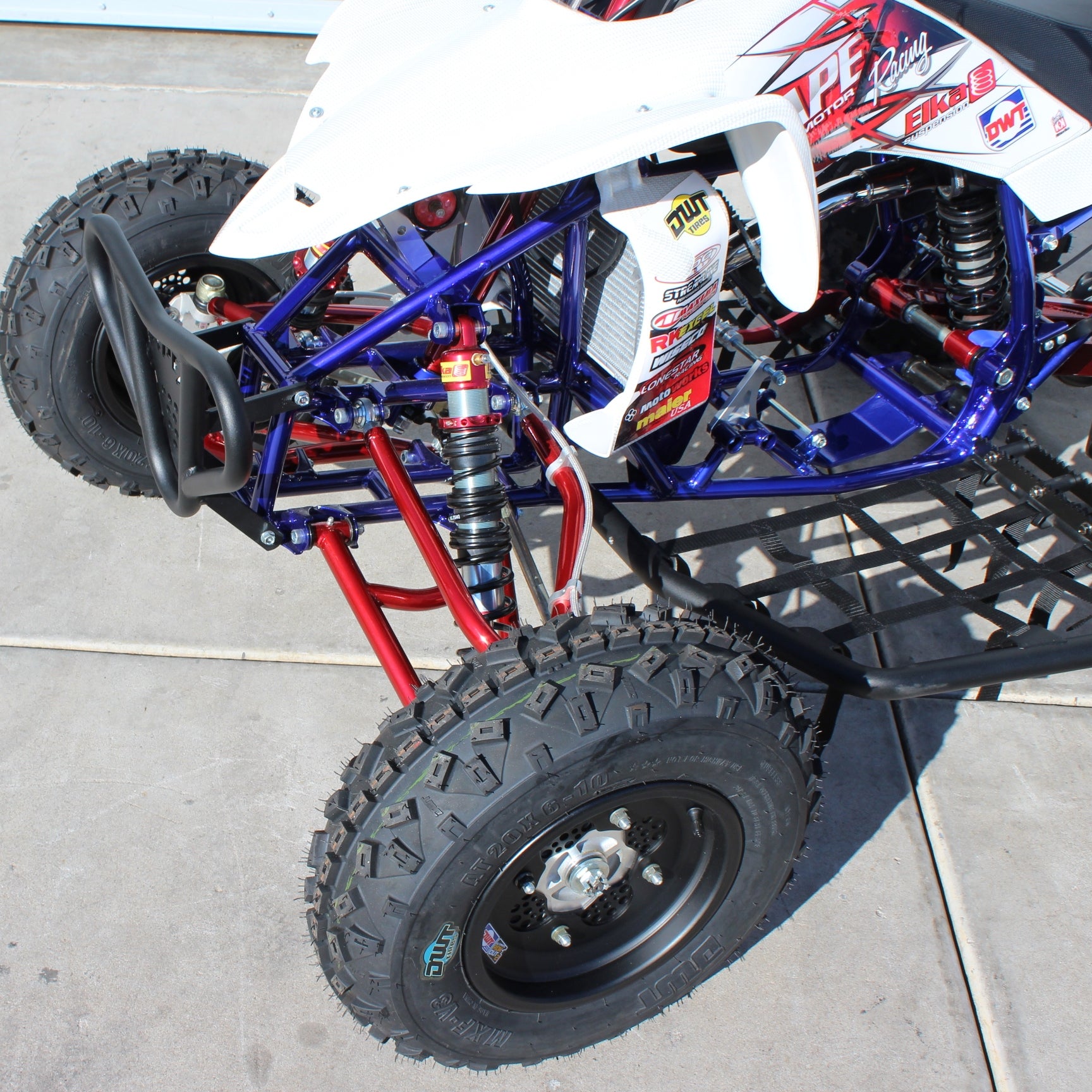

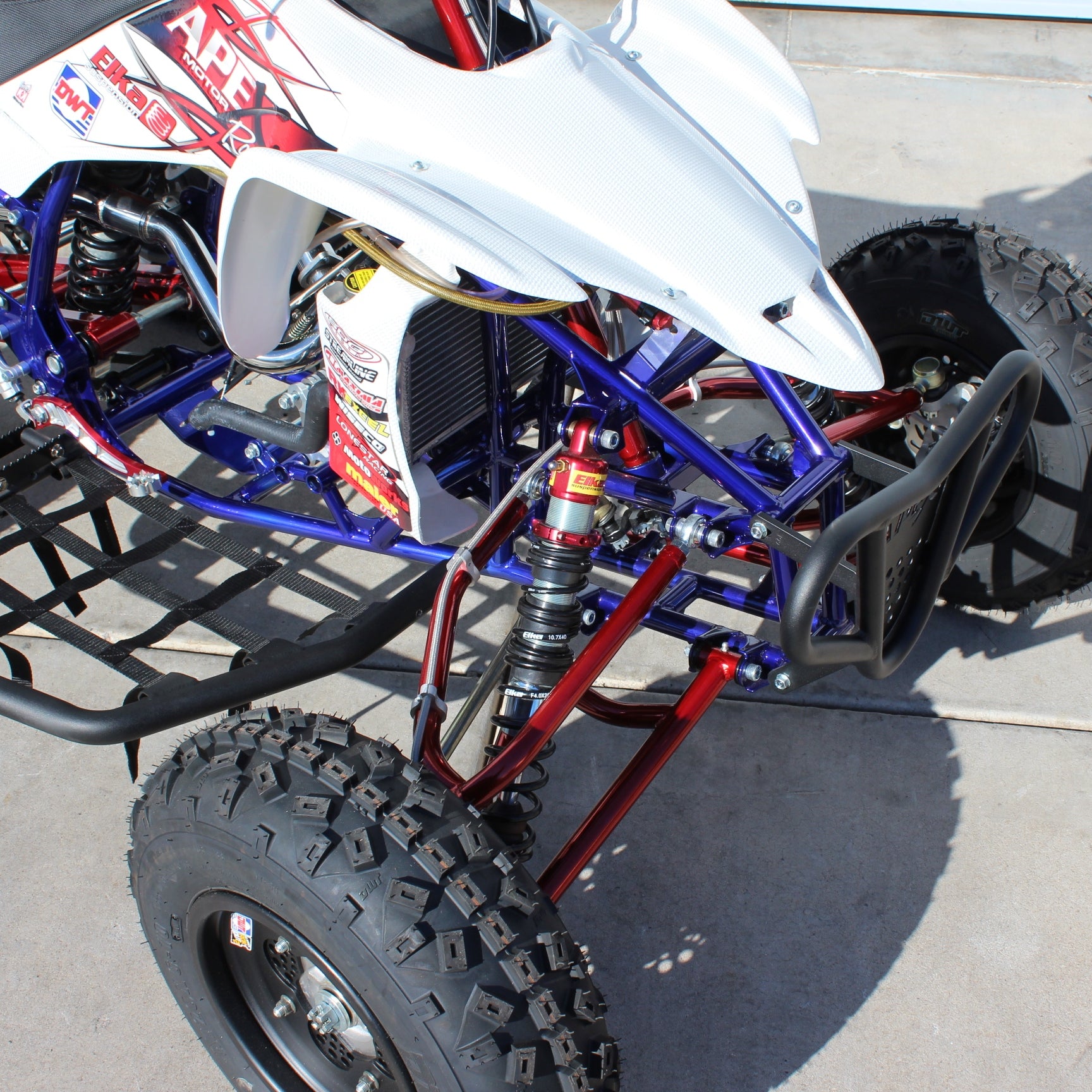

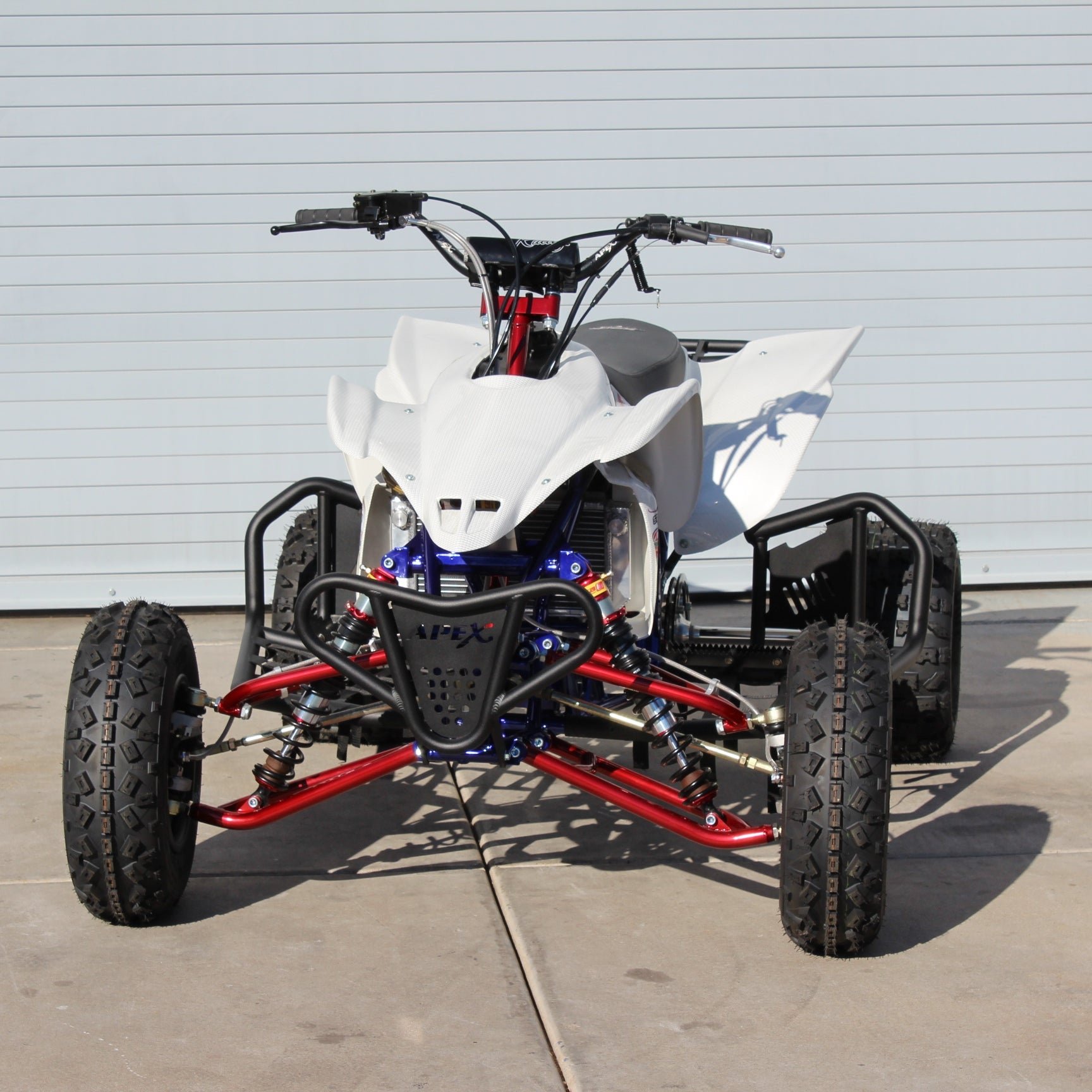

Suspension:    Front: DC4 Long-travel 2+1 A-arms

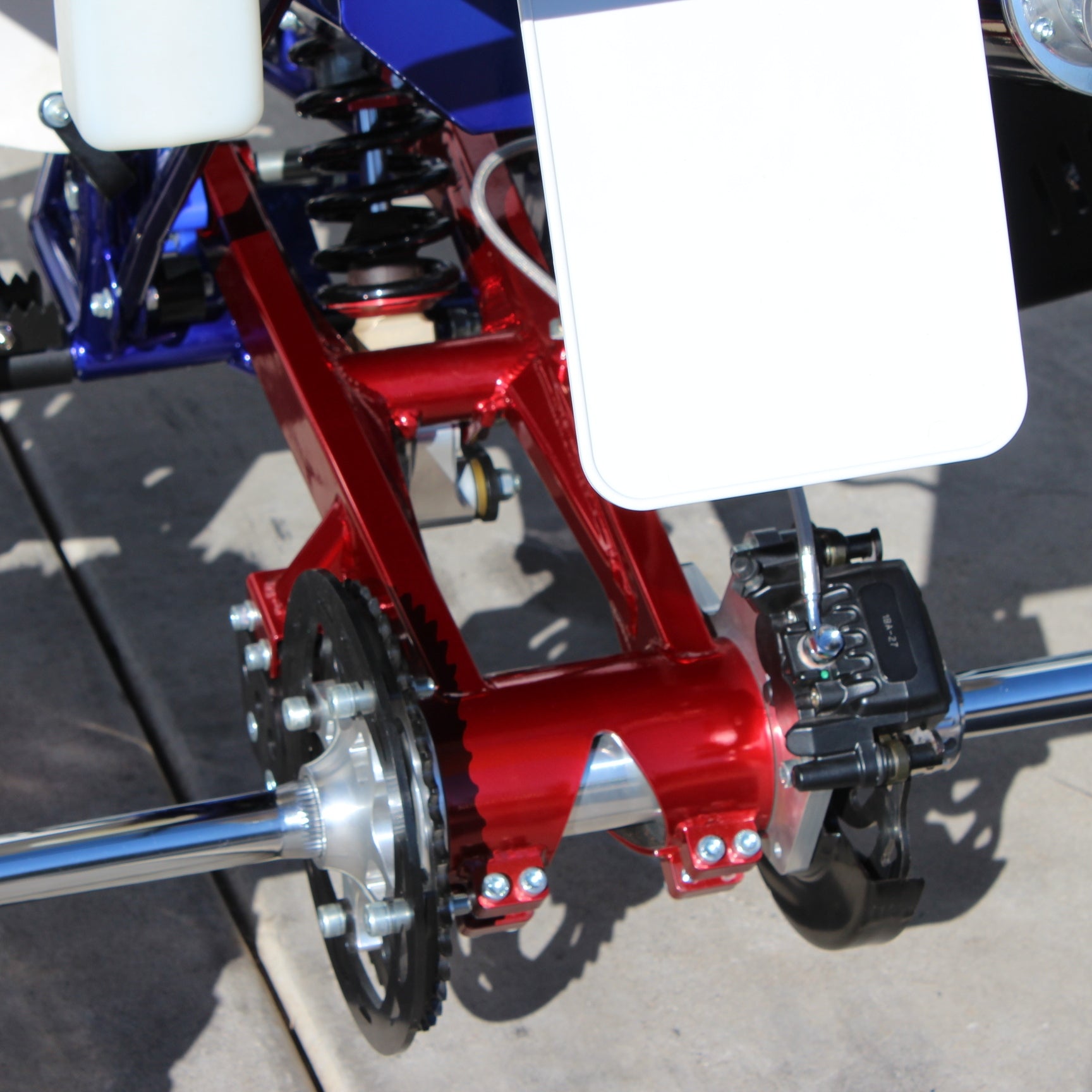

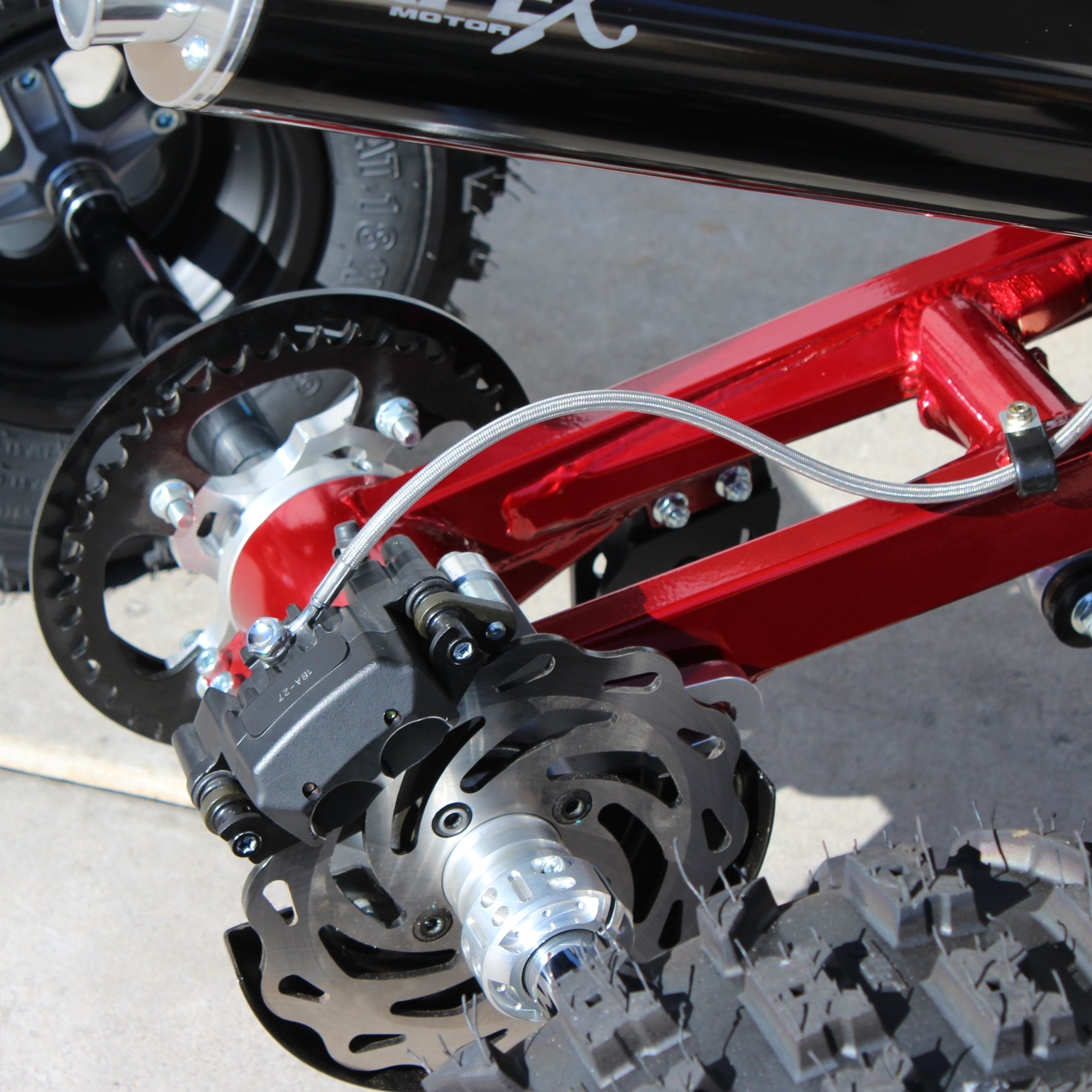

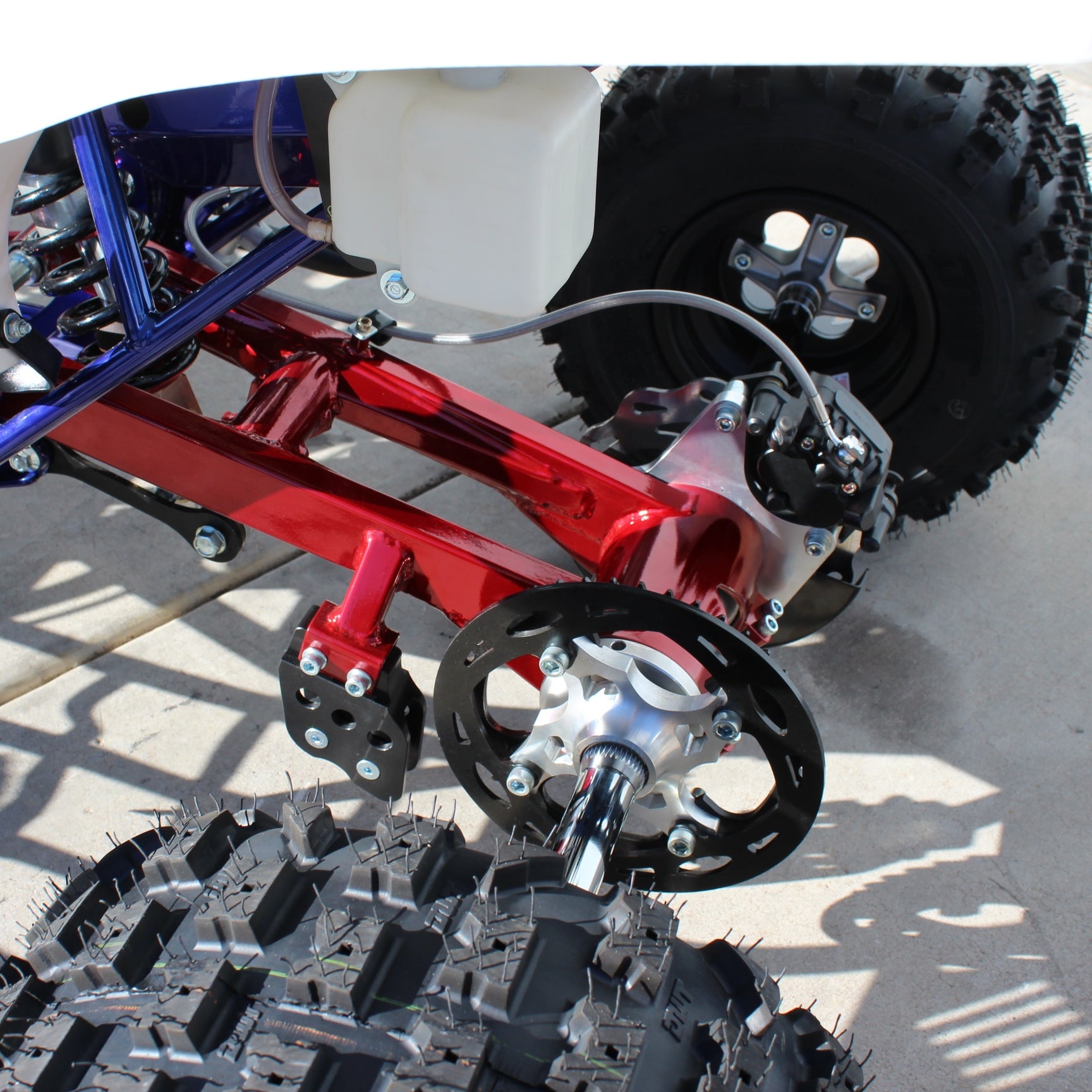

                       Rear: Billet Axle Housing / Billet Wheel Hubs / Billet Sprocket Hub / Billet                                      Brake Rotor Hub
Axle: 2+2

Wheel Travel:    Front: A-arms w/11.5”
                          Rear: Swing arm w/12”

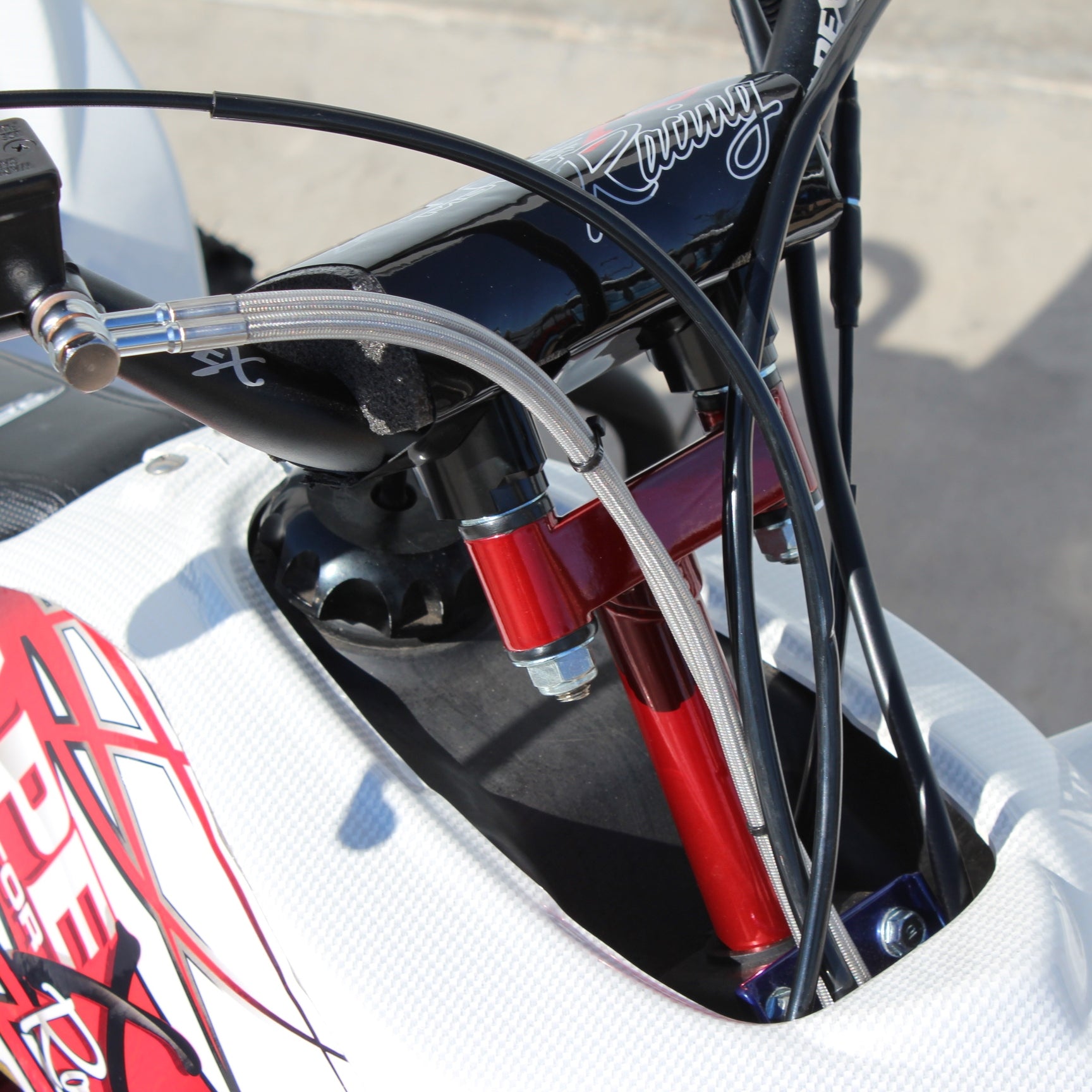

Steering: Anti-vibe Stem w/T2 1 1/8” Handle Bars

Bumper: Aluminum

Grab Bar: Aluminum

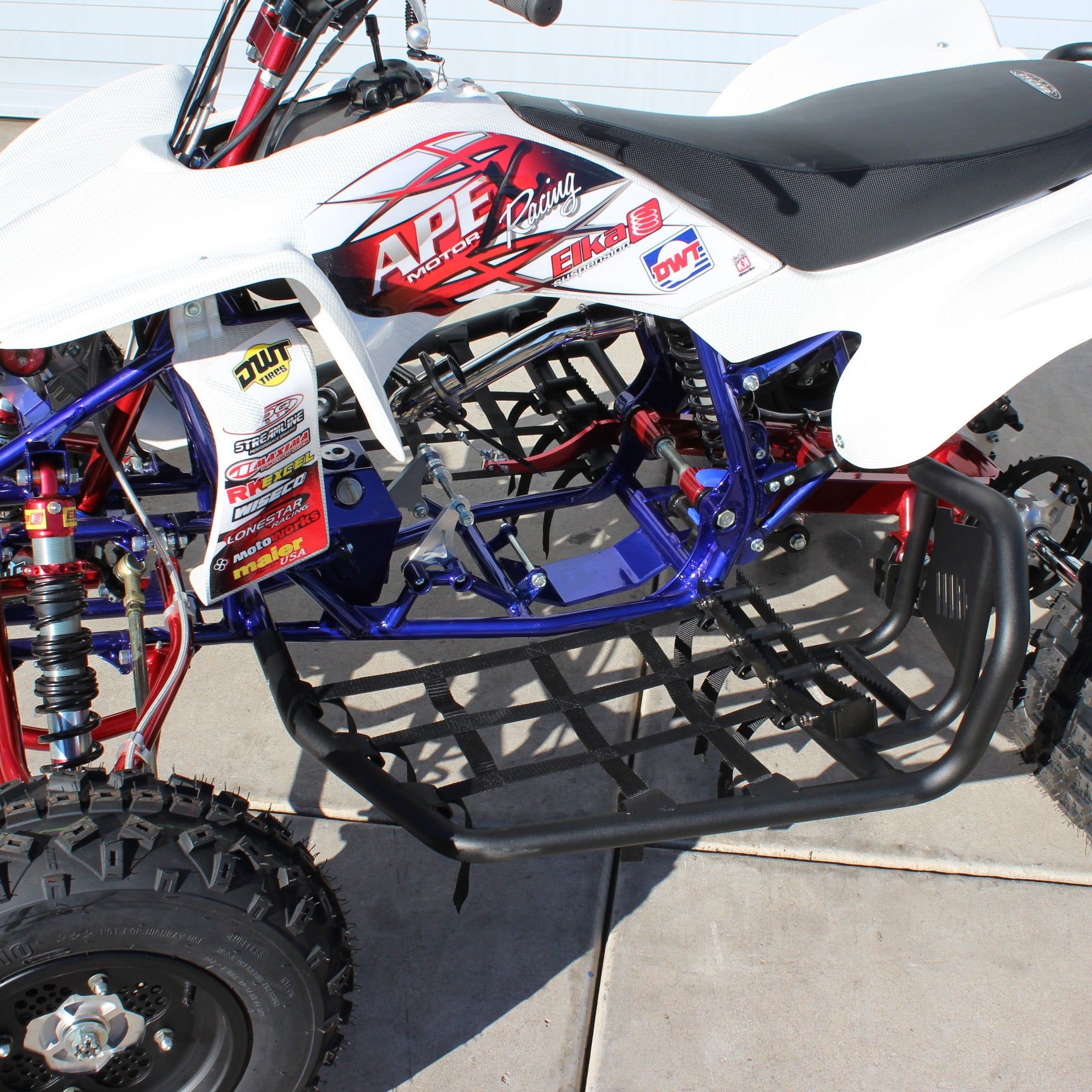

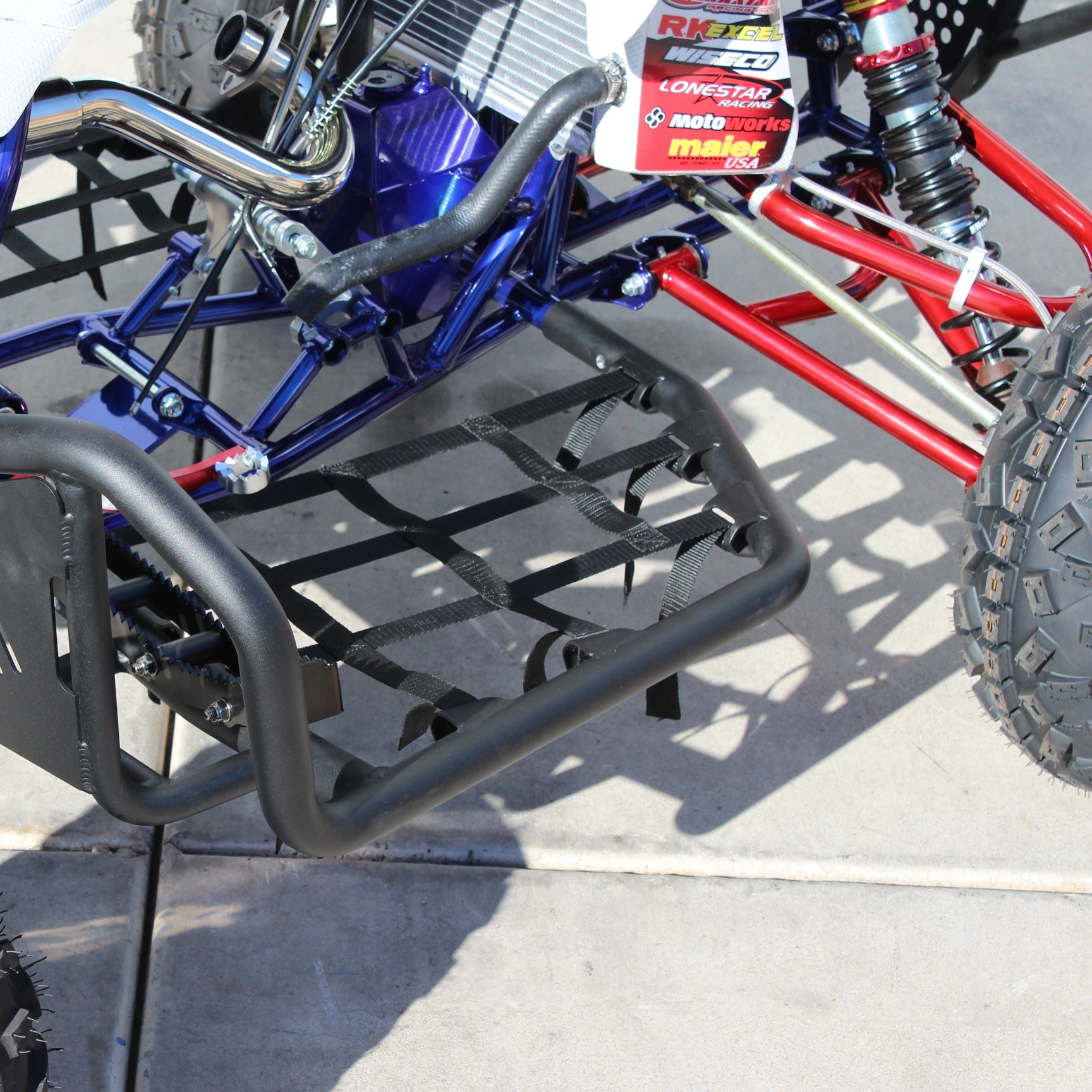

Pro Peg Nerf Bars: Aluminum

Air Filer Box: Aluminum

Oil Tank: Aluminum Oversized

Fuel Cap: Aluminum Billet

Brake Pedal: Aluminum Billet

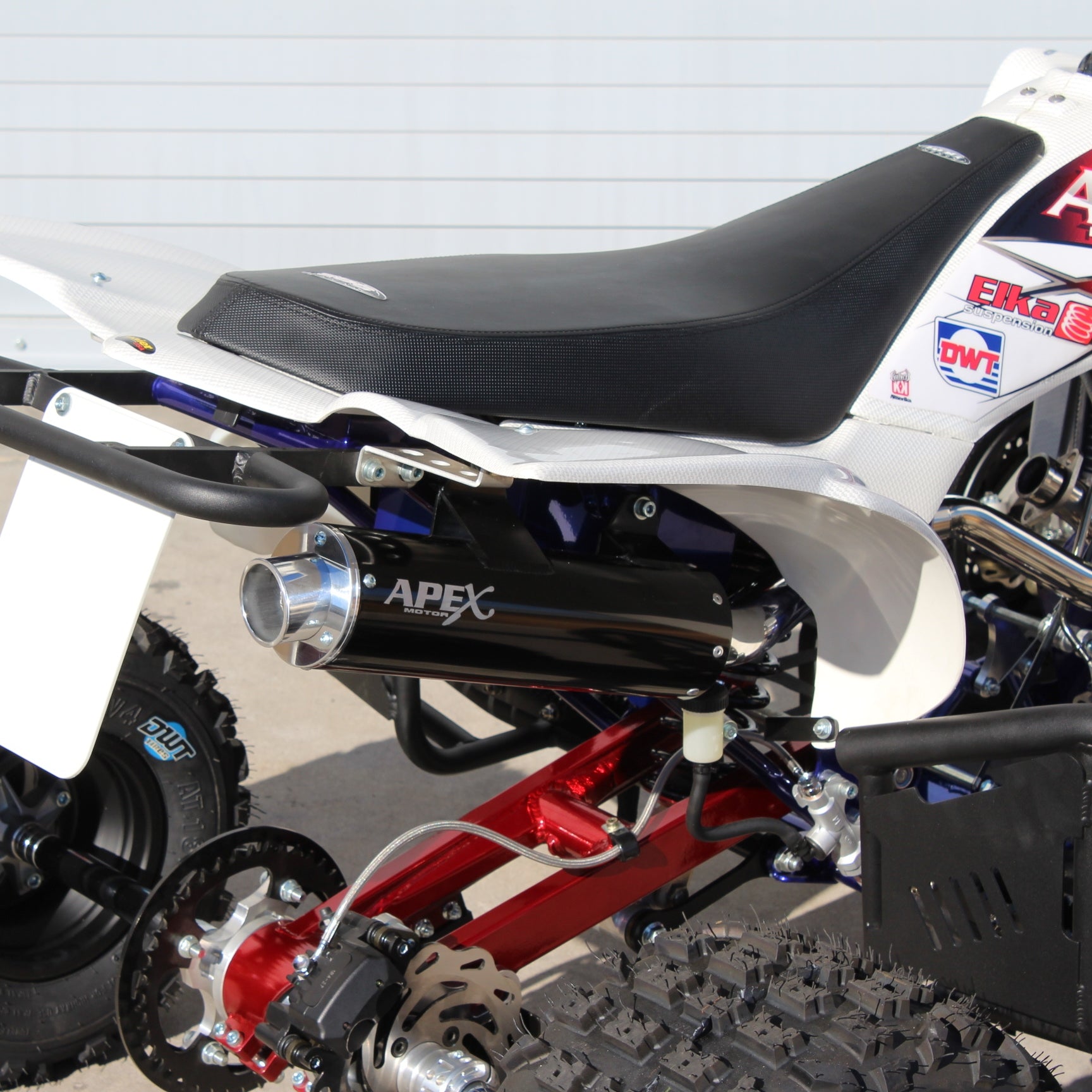

Seat: SDG

Body Cover: Maier YFZ 450,  Color - Carbon Fiber White

Shocks:    Front: Elka Stage III Quad-Rate Adjustable Compression & Rebound Piggy                                       Back Reservoir
                 Rear: Elka Stage III Dual-Rate Adjustable Compression & Rebound                                                  Remote Reservoir w/Linkage

Fuel Capacity: 2.6 gal

Final Drive: Chain-520 (14x42)

Length/Width: 71”/ 50”

Wheelbase: 51”

Seat Height: 31”

Wet Weight: 340 lb  (With engine)

Brakes:    Front: Dual Hydraulic Discs w/Wave Rotor & Dual Stainless Steel Brake                                             Lines
                Rear: Hydraulic Disc w/Wave Rotor & Stainless Steel Brake Line

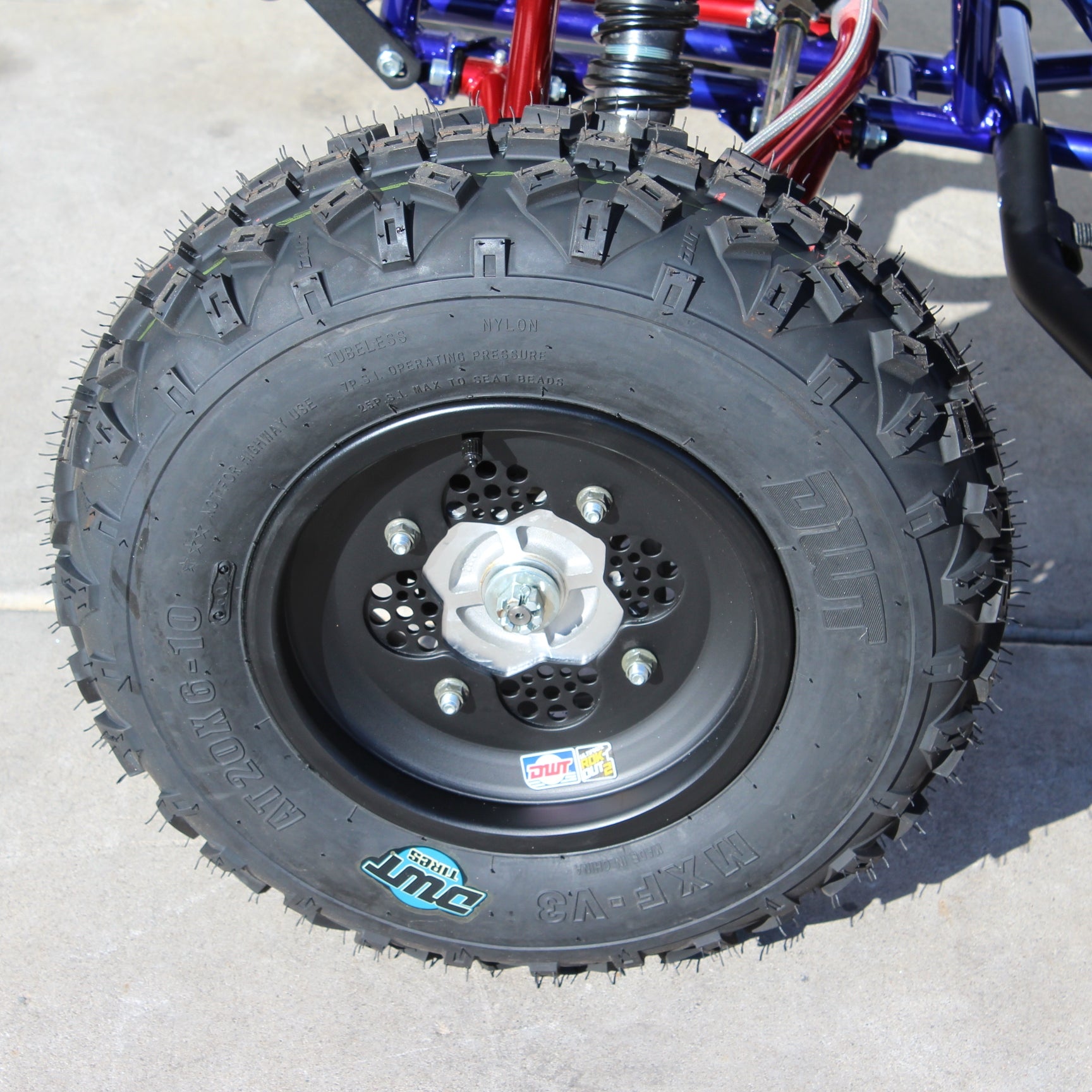

Tires:    Front: DWT 20x6-10

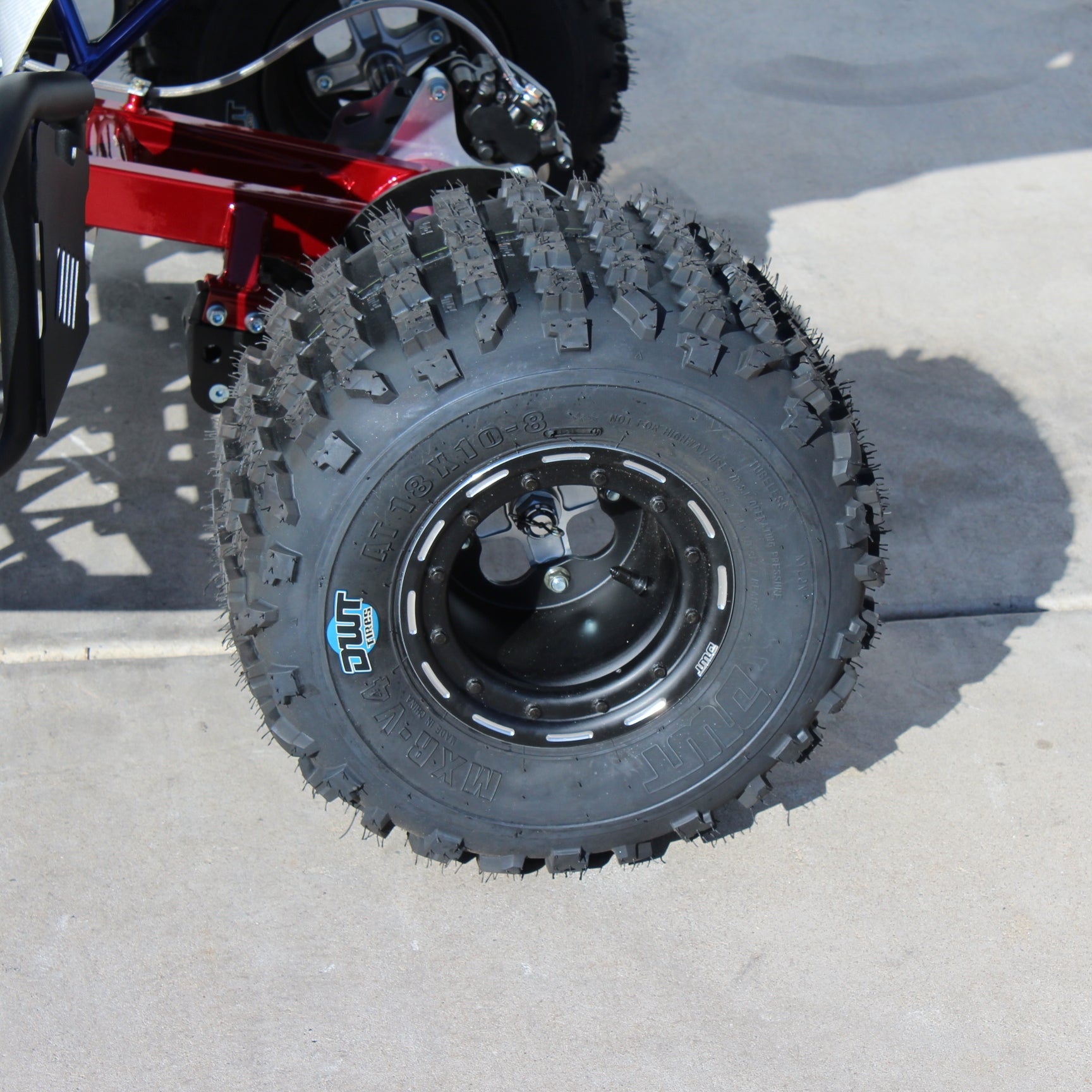

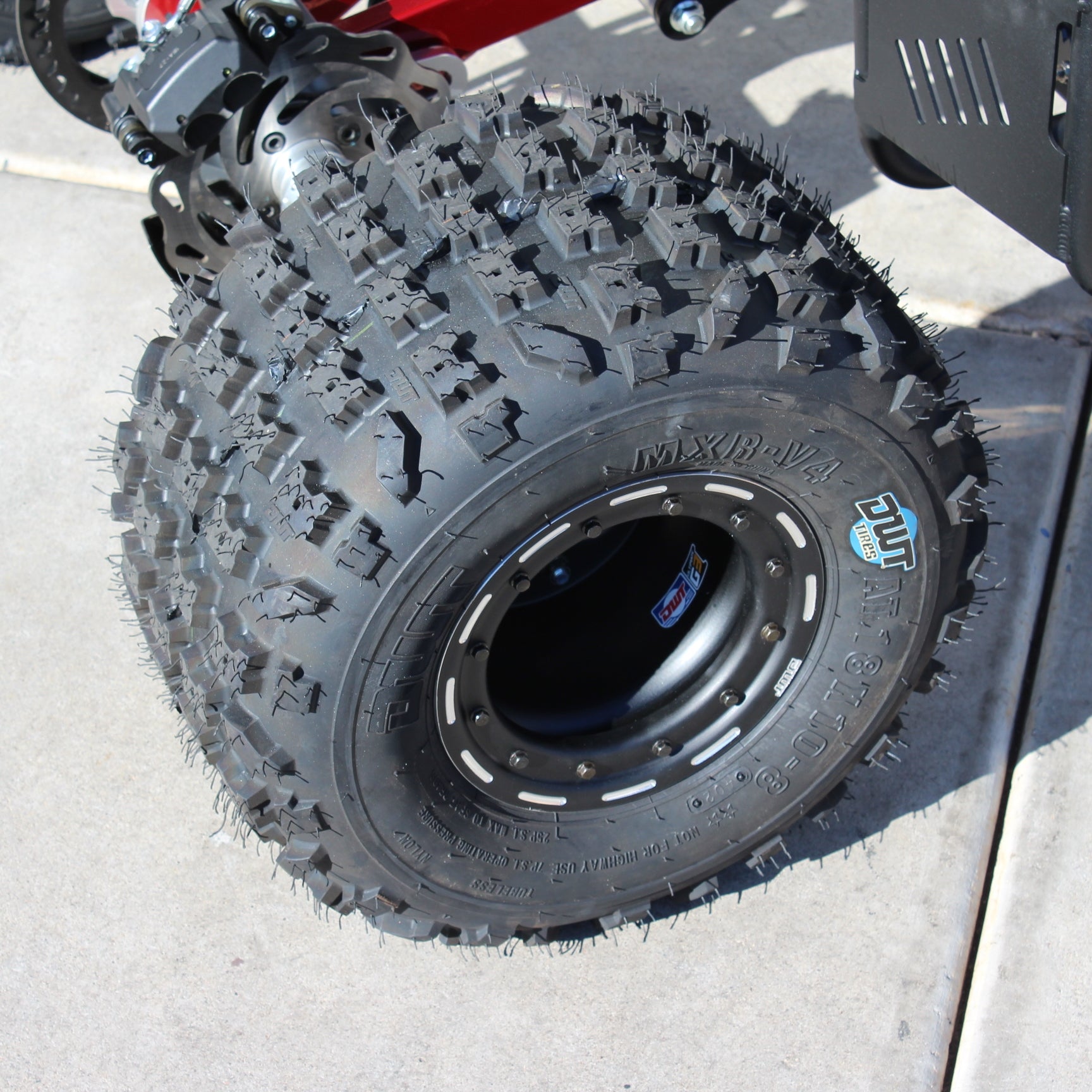

             Rear: DWT 18x10-8

Wheels:    Front: DWT Rok-Out 10x5 (4+1) Black
                 Rear: DWT Beadlock 8x8 (3+5) Black
