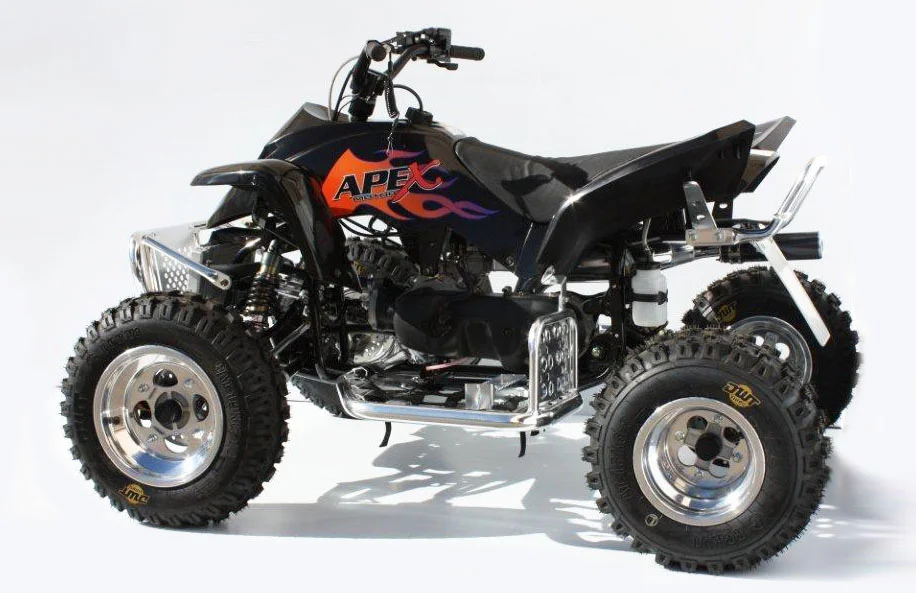

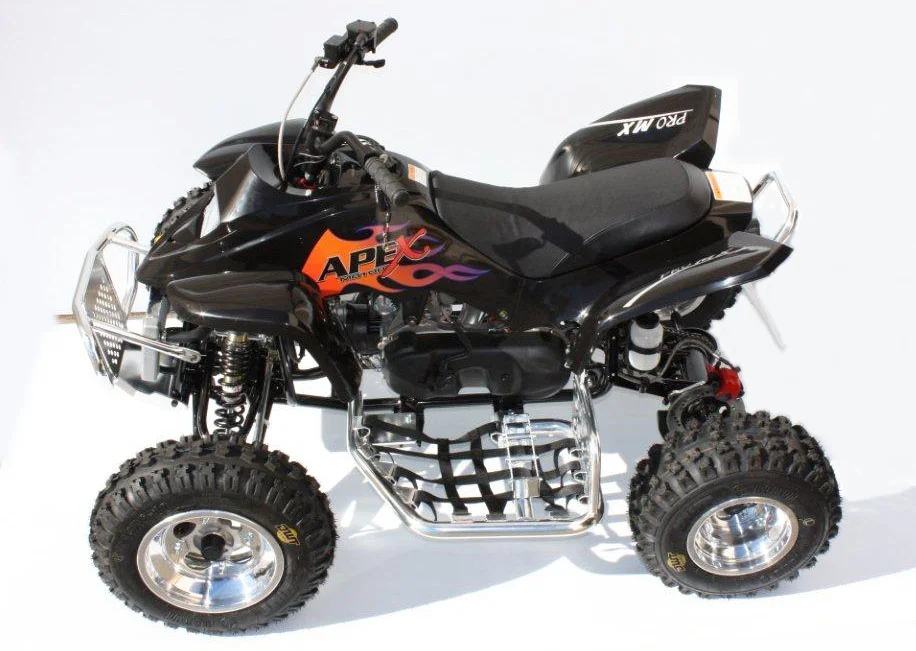

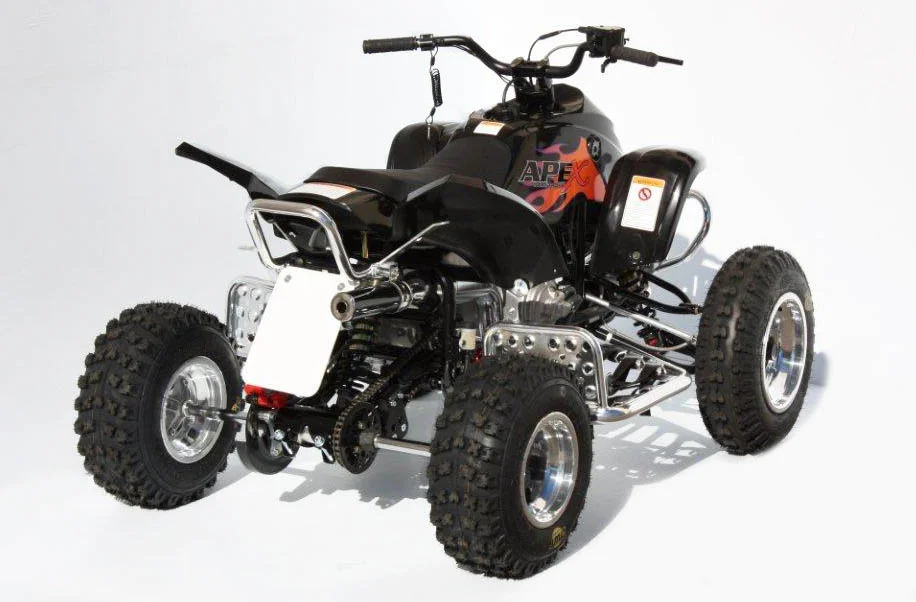

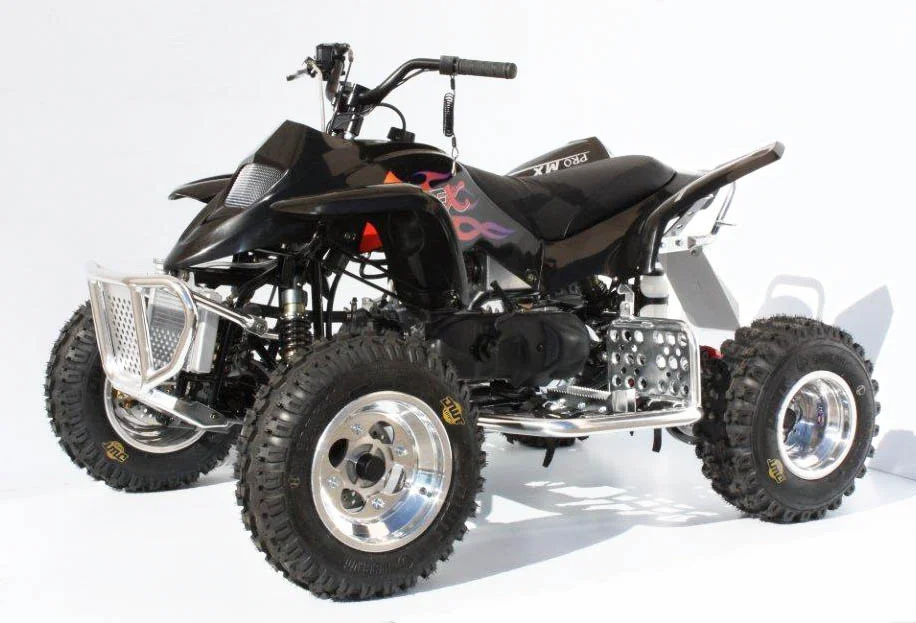

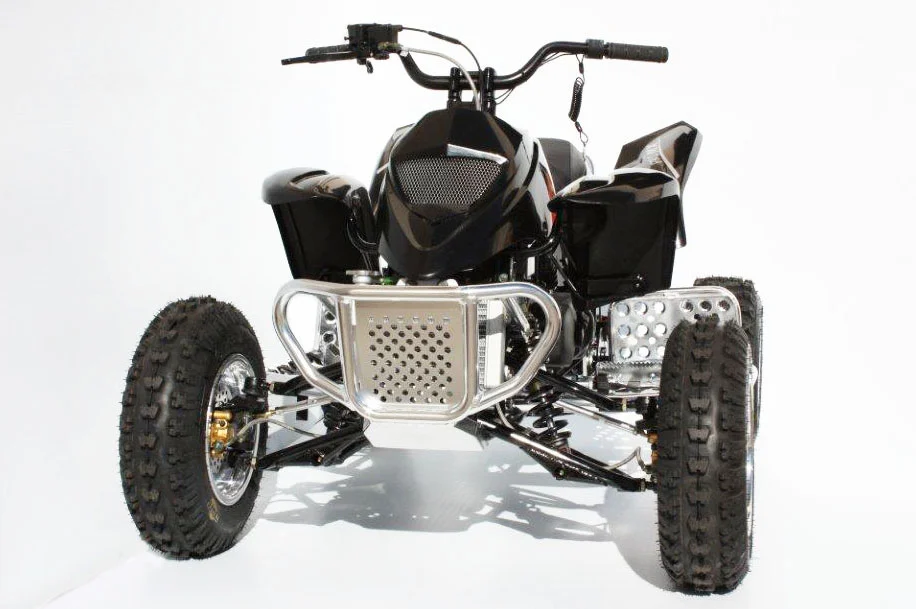

PRO MXR 90

FEATURES:
ALL HIGH PERFORMANCE PARTS
14 1/2" GAS ADJUSTABLE SHOCKS
LIGHTENED CLUTCH

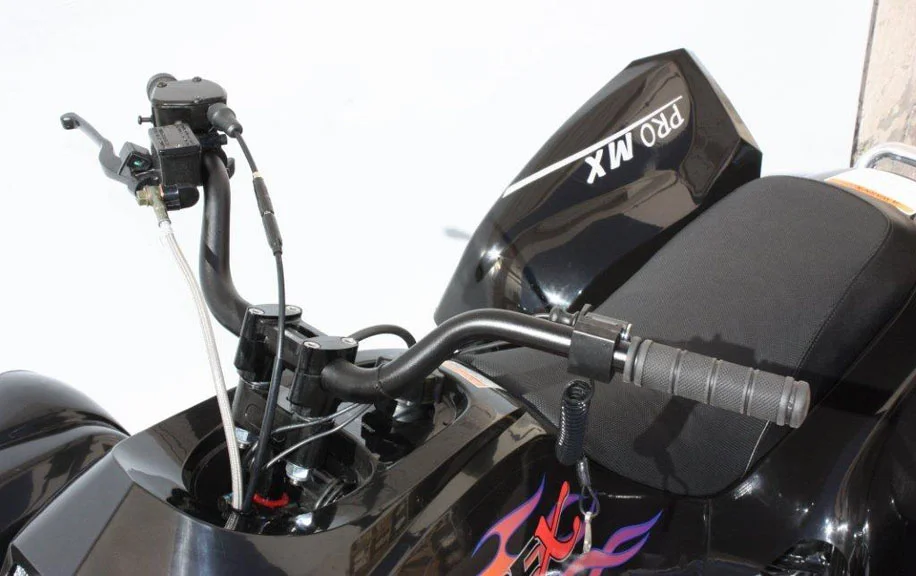

ANTI-VIBE STEERING STEM

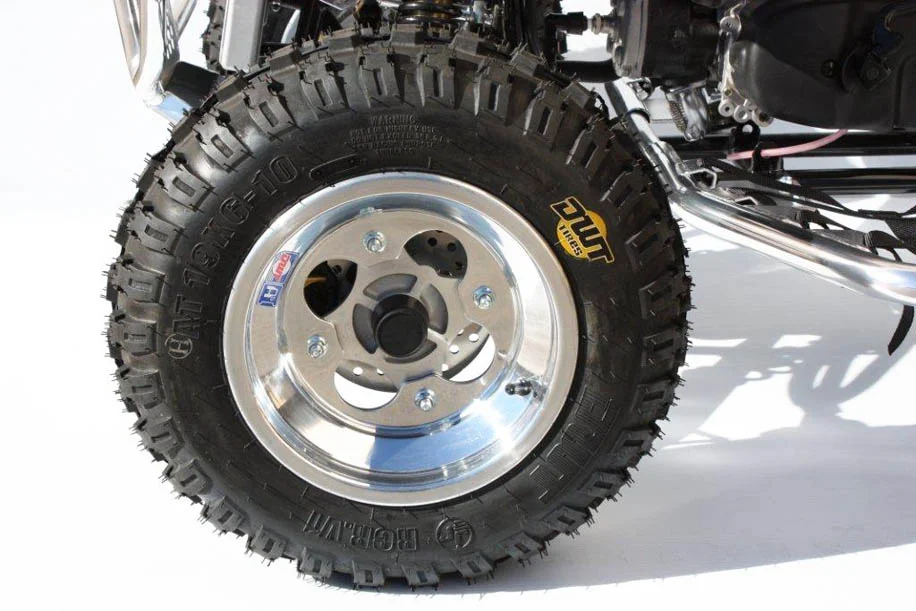

DWT ALUMINUM ROLLED EDGE WHEELS
RIDE ENGINEERED LONG TRAVEL DUAL A-ARMS WITH ZERO BUMP STEER
PERFORMANCE AXLE CARRIER
KILL TETHER

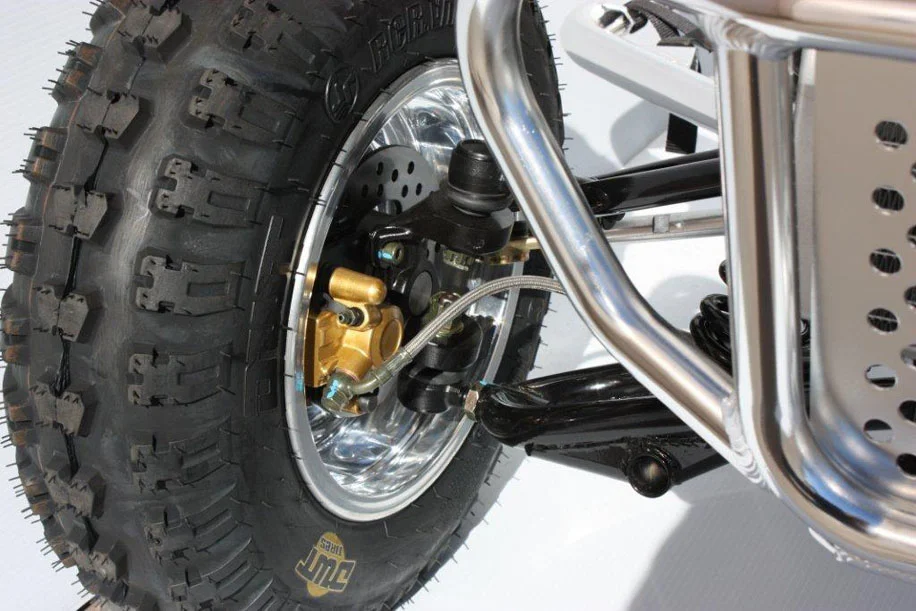

HYDRAULIC DISC BRAKES (FRONT/REAR)
ALUMINUM AIR BOX
TUNED PIPE, SILENCER AND CARBURETOR

DRY WEIGHT: 240 LBS
ENGINE TYPE: 90cc 2-STROKE
INDUCTION: CASE REED
COOLING: WATER COOLED
CLUTCH: DRY THREE SHOE
TRANSMISSION: CVT AUTOMATIC
EXHAUST: TUNED PIPE AND SILENCER
LUBRICATION: PRE-MIX
STARTING: KICKSTART

WIDTH: 44"
WHEELBASE: 42"
SEAT HEIGHT: 29"
GROUND CLEARANCE: 7"
FRONT & REAR BRAKES: HYDRAULIC DISC
FRONT SUSPENSION: DUAL A-ARMS W/ 14 1/2" ADJUSTABLE GAS SHOCKS

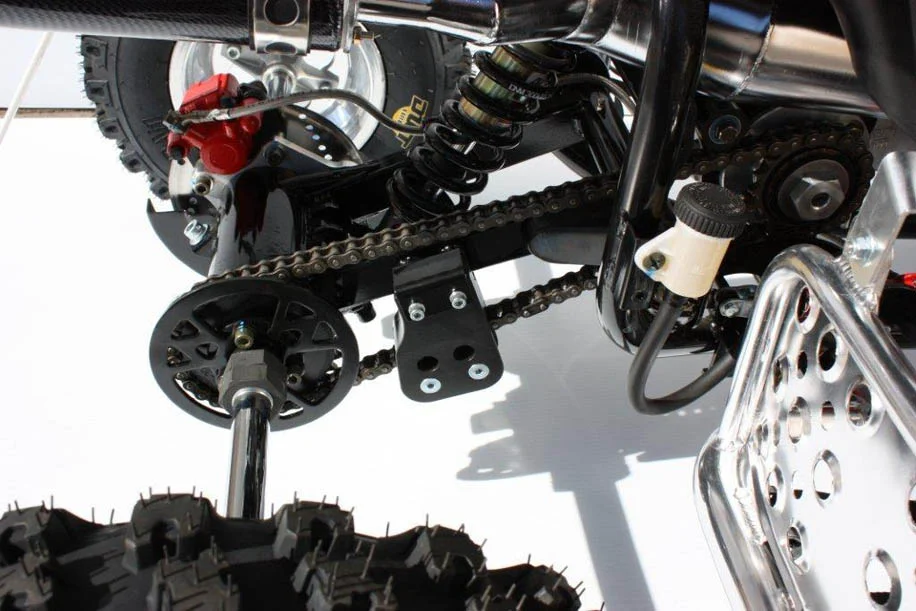

REAR SUSPENSION: SWING AXLE W/ 14 1/2" ADJUSTABLE GAS SHOCKS
WHEELS FRONT/REAR: DOUGLAS 10X5 (3+2) 8X6 (2+4) ROLLED EDGE
TIRES FRONT/REAR: DWT 19X6-10  18X6-8
